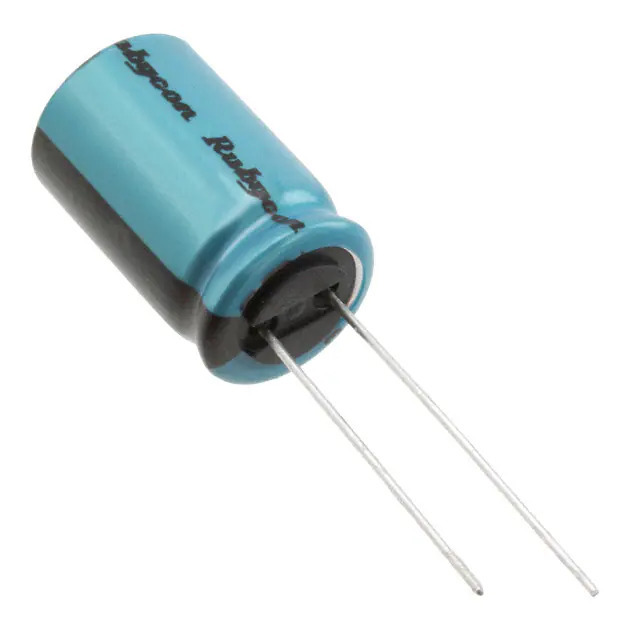

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series RX30
Package Bulk
Product Status Active
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 4000 Hrs @ 130°C
Temperature Range - Operating -40°C ~ 130°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 700 mA @ 120 Hz
Ripple Current @ High Frequency 1 A @ 100 kHz
Impedance 65 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 0.866" (22.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358125-50RX30330M12.5X20
Ultra Librarian 3D Model Ultra Librarian 50RX30330M12.5X20 CAD Model

Description

The Rubycon RX30 series aluminum electrolytic capacitor is specifically designed for automotive applications.

  • Applications: Automotive
  • Capacitance: 330 μF
  • Voltage - Rated: 50 V
  • Tolerance: ±20%
  • ESR (Equivalent Series Resistance): -
  • Lead Spacing: 5.00mm
  • Size / Dimension: 12.50mm Dia
  • Height - Seated (Max): 22.00mm
  • Mounting Type: Through Hole
  • Lifetime @ Temp.: 4000 Hrs @ 130°C
  • Series: RX30
  • Status: Active
