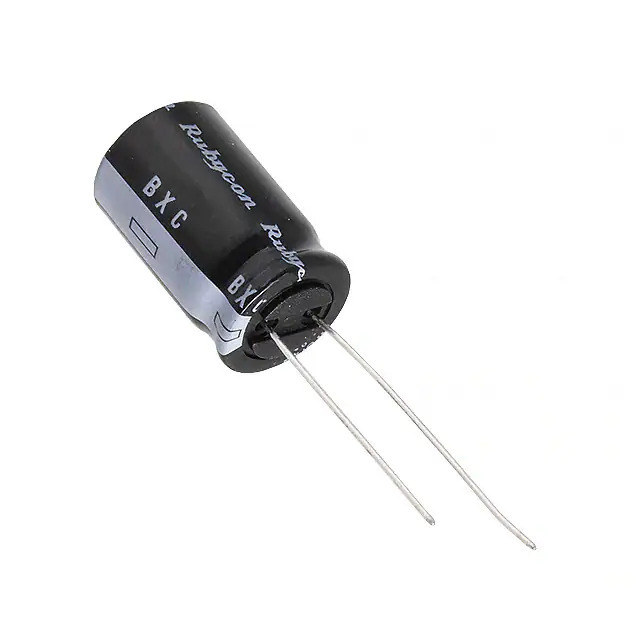

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series BXC
Package Bulk
Product Status Active
Capacitance 15 µF
Tolerance ±20%
Voltage - Rated 450 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 12000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 135 mA @ 120 Hz
Ripple Current @ High Frequency 450 mA @ 100 kHz
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 0.866" (22.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357885-450BXC15MEFC12.5X20
Ultra Librarian 3D Model Ultra Librarian 450BXC15MEFC12.5X20 CAD Model

Description

The Rubycon 1357885-450BXC15MEFC12.5X20 is an aluminum electrolytic capacitor designed for general-purpose applications.

  • Capacitance: 15 µF
  • Voltage - Rated: 450 V
  • Temperature Range: -25°C ~ 105°C
  • Lifetime @ Temp.: 12000 Hrs @ 105°C
  • Package / Case: Radial, Can
  • Size / Dimension: 0.492" Dia (12.50mm)
  • Height - Seated (Max): 0.866" (22.00mm)
  • Lead Spacing: 0.197" (5.00mm)
  • Mounting Type: Through Hole
  • Ripple Current @ Low Frequency: 135 mA @ 120 Hz
  • Ripple Current @ High Frequency: 450 mA @ 100 kHz
