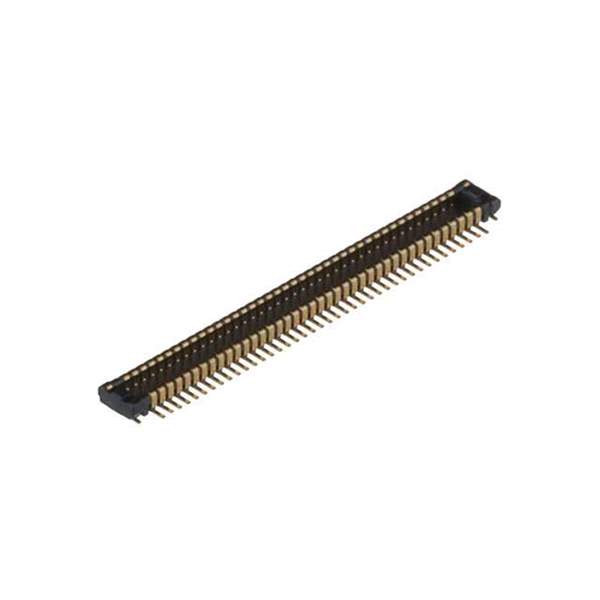

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Connector Type Header, Center Strip Contacts
Number of Positions 80
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 1mm
Height Above Board 0.033" (0.84mm)
Win Source Part Number 1021146-AXT680124A
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 500
Ultra Librarian 3D Model Ultra Librarian AXT680124A CAD Model

Description

The Panasonic Electric Works AXT680124A is a header, center strip contacts connector type with 80 positions and 2 rows.

  • Connector Type: Header, center strip contacts
  • Number of Positions: 80
  • Number of Rows: 2
  • Pitch: 0.016" (0.40mm)
  • Features: Solder retention
  • Contact Finish: Gold
  • Mated Stacking Heights: 1mm
  • Height Above Board: 0.033" (0.84mm)
  • Mounting Type: SMD (SMT)
  • Category: Connectors, Interconnects
  • Status: Active
  • Supply and Demand Status: Sufficient
  • Package Quantity: 500
