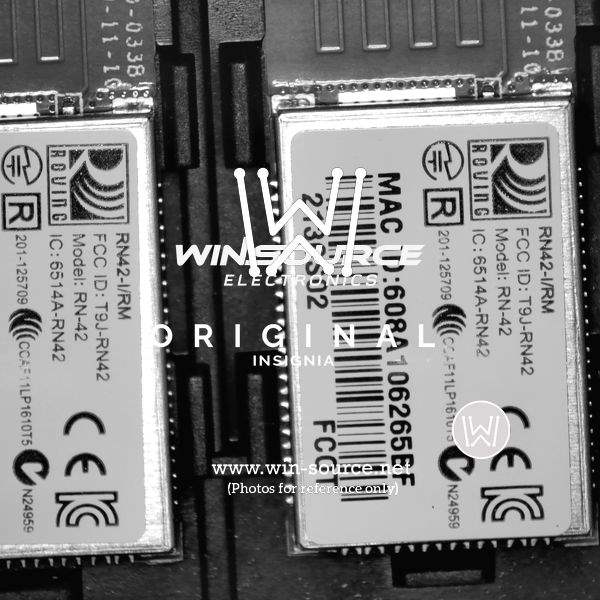

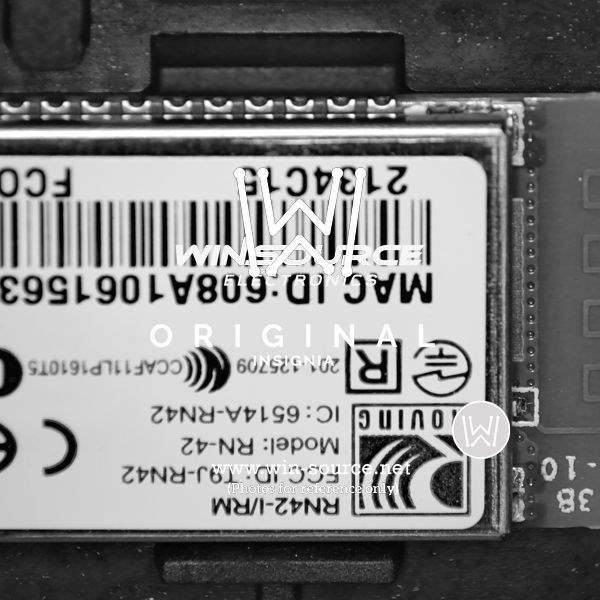

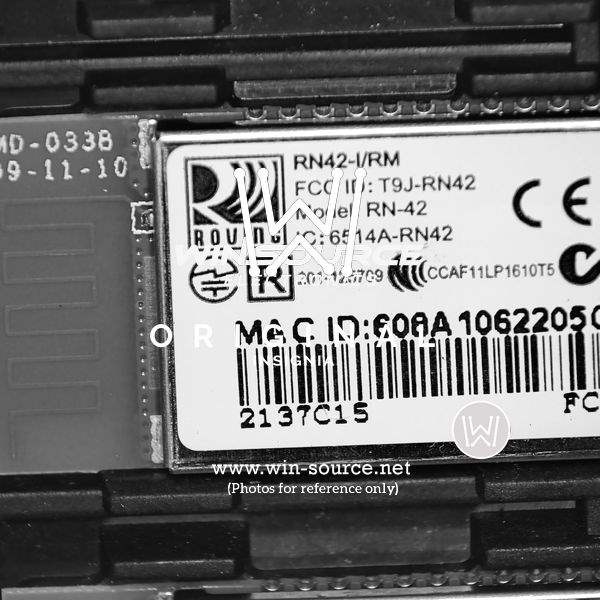

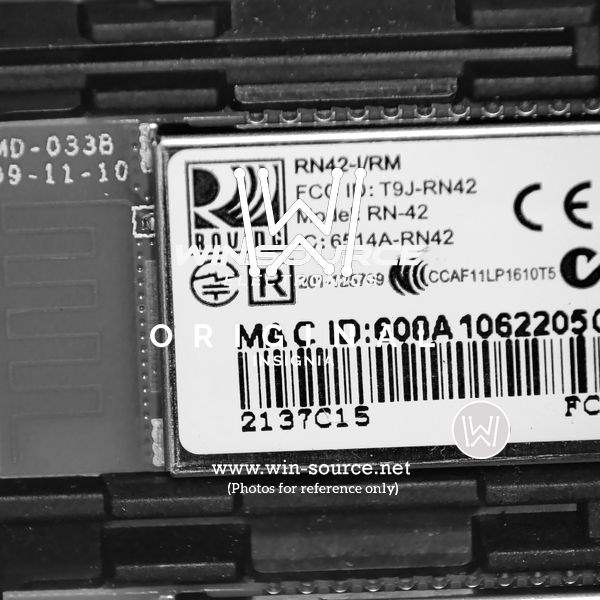

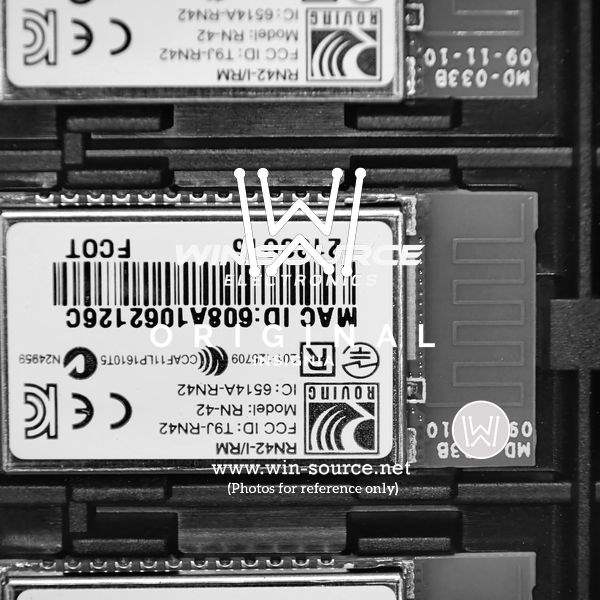

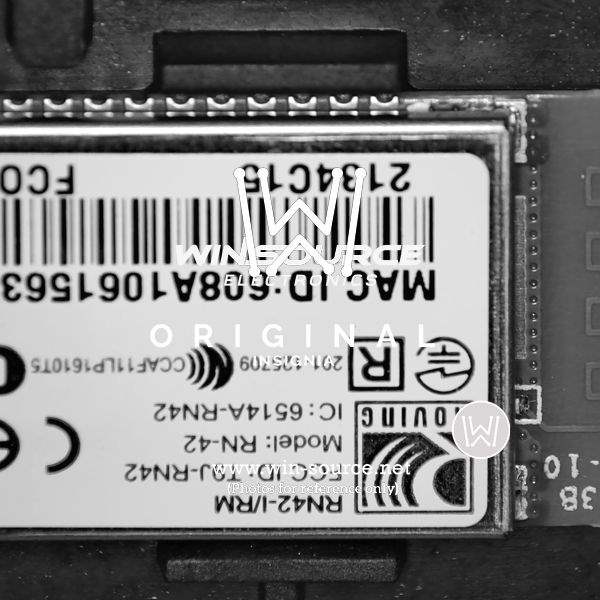

RN42-I/RM

Part No RN42-I/RM
Manufacturer Microchip Technology
Catalog RF Transceiver Modules
Description Class 2 Bluetooth® Module with EDR Support
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Microchip Technology
Packaging Tray
RF Family/Standard Bluetooth
Protocol Bluetooth v2.1 +EDR, Class 2
Frequency 2.4GHz
Data Rate 300kbps
Power - Output 4dBm
Sensitivity -80dBm
Serial Interfaces UART
Antenna Type Integrated, Trace
Operating Supply Voltage 3 V ~ 3.6 V
Current - Transmitting 30mA
Mounting SMD
Operating Temperature Range -40°C ~ 85°C
Package 35-SMD Module
Win Source Part Number 1243486-RN42-I/RM
Manufacturer Homepage www.microchip.com
Family Name RN42
Introduction Date January 01, 2000
ECCN 5A992.c
Country of Origin China
Halogen Free Unknown
Estimated EOL Date 2024
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Application Field Used in Industrial, Communications & Networking, Consumer Electronics, Automation & Process Control, Embedded Design & Development
Ultra Librarian 3D Model Ultra Librarian RN42-I/RM CAD Model

Description

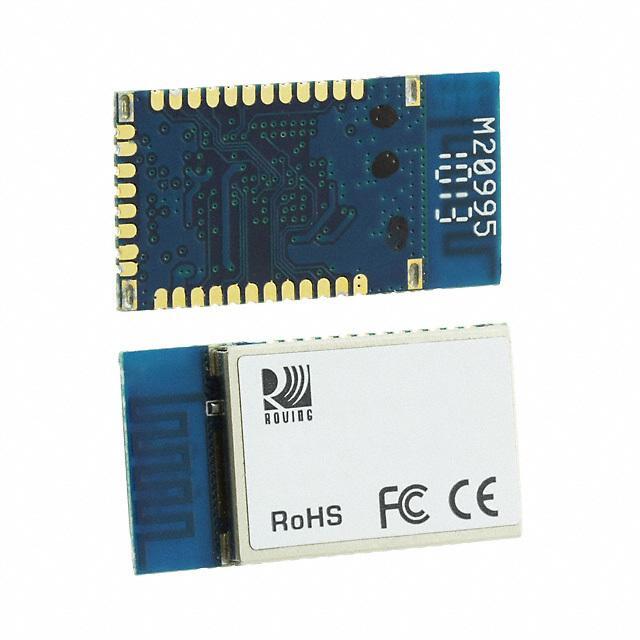

Microchip Technology's RN42-I/RM Bluetooth Module

The RN42-I/RM is a compact, highly integrated Bluetooth 2.1 + EDR (Enhanced Data Rate) module from Microchip Technology, designed for ease of use and rapid implementation into a wide array of wireless communication applications. This small form-factor module is a perfect solution for developers looking to integrate Bluetooth functionality with minimal development time and investment.

Key Features

  • Bluetooth 2.1 + EDR Compliance: The module is fully compliant with Bluetooth version 2.1 specifications, plus EDR, offering an improved data rate up to 3 Mbps.
  • Class 2 Bluetooth Radio: With its built-in power amplifier, the RN42-I/RM operates as a Class 2 Bluetooth radio, providing a standard range of up to 30 feet (10 meters).
  • Low Power Consumption: The module is optimized for low power consumption, making it ideal for battery-powered applications, with a sleep mode that consumes only 26 µA.
  • Easy Integration: The RN42-I/RM supports multiple interface protocols, including UART, USB, and GPIO, allowing for straightforward integration with microcontrollers and other host devices.
  • Secure Communication: It features built-in authentication and encryption protocols, ensuring secure wireless communication.
  • Robust Data Rates: The module supports sustained SPP data rates of 240 Kbps in both transmit and receive modes.
  • Ready-to-Use Firmware: The RN42-I/RM comes with preloaded firmware, facilitating rapid deployment and reducing development time.

Applications

The versatility of the RN42-I/RM module makes it suitable for a diverse range of applications, including but not limited to:

  • Industrial controls and monitoring
  • Medical devices
  • Barcode scanners
  • Wireless sensor networks
  • Consumer electronics
  • Telemetry and remote control

With its small footprint, measuring just 26.92mm x 13.21mm, the RN42-I/RM is ideal for designs where space is at a premium. Its reliable performance, coupled with Microchip's support and resources, make this module a go-to choice for developers aiming to quickly and efficiently incorporate Bluetooth technology into their products.
