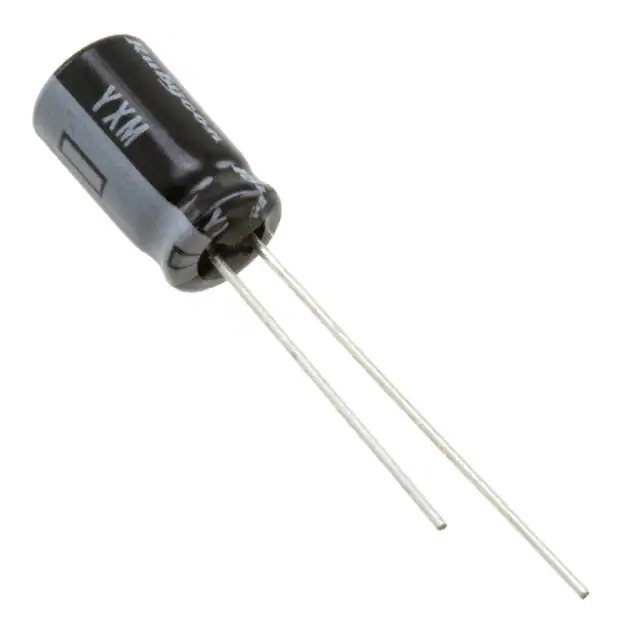

35YXM100MEFR8X11.5 Rubycon
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series YXM
Package Bulk
Product Status Active
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 231 mA @ 120 Hz
Ripple Current @ High Frequency 330 mA @ 100 kHz
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.512" (13.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357735-35YXM100MEFR8X11.5
Ultra Librarian 3D Model Ultra Librarian 35YXM100MEFR8X11.5 CAD Model

Description

The Rubycon YXM series is a bulk aluminum electrolytic capacitor with a capacitance of 100 µF and a voltage rating of 35 V.

  • Temperature Range: -40°C to 105°C
  • Tolerance: ±20%
  • Ripple Current: 231 mA @ low frequency (120 Hz), 330 mA @ high frequency (100 kHz)
  • Lifetime: 10000 hours @ 105°C
  • Polarization: Polarized
  • Size: 0.315" (8.00mm) diameter, 0.512" (13.00mm) height
  • Application: General-Purpose
  • Mounting Type: Through Hole
  • Product Status: Active
  • REACH: Unaffected
