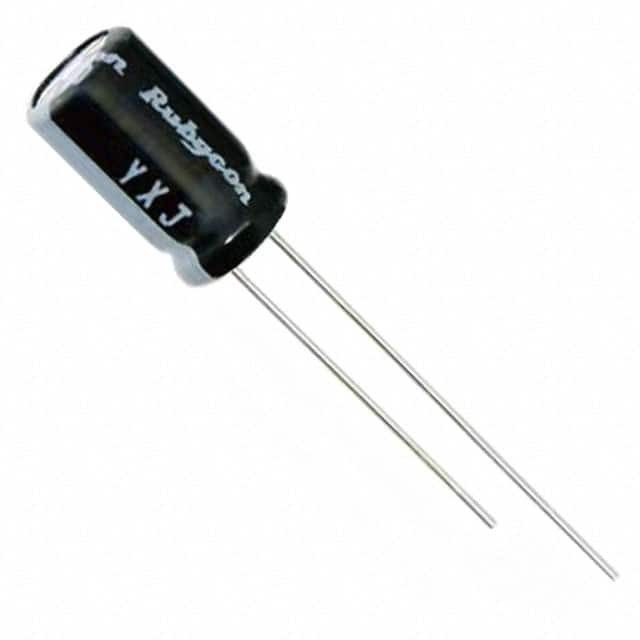

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series YXJ
Package Bulk
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 35 V
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 907.5 mA @ 120 Hz
Ripple Current @ High Frequency 1.21 A @ 100 kHz
Impedance 62 mOhms
Lead Spacing 0.197" (5.00mm)
Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.689" (17.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 35YXJ470M10X16-ND,1189-4180
Standard Package 1,000
Win Source Part Number 1129609-35YXJ470M10X16
Ultra Librarian 3D Model Ultra Librarian 35YXJ470M10X16 CAD Model

Description

The YXJ series capacitor is an aluminum electrolytic capacitor designed for use in general-purpose applications from Rubycon.

  • Capacitance: 470 µF
  • Voltage Rating: 35 V
  • Tolerance: ±20%
  • Impedance: 62 mOhms
  • Ripple Current (Low Frequency): 907.5 mA
  • Ripple Current (High Frequency): 1.21 A
  • Height: 0.689" (17.50mm)
  • Diameter: 0.394" (10.00mm)
  • Polarized: yes
  • Mounting Type: through-hole
  • Temperature Range: -40°C to 105°C
  • Lifetime: 10,000 hours @ 105°C
  • Package: radial, can package
  • Category: Capacitors
