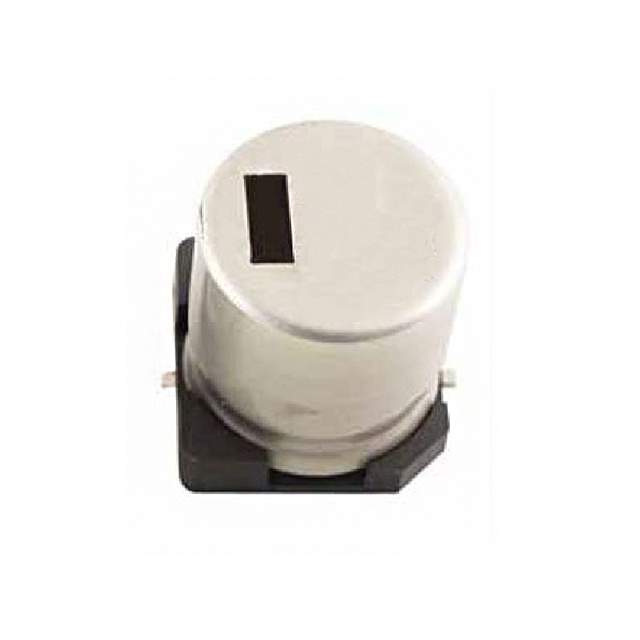

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series TRV
Package Tape & Reel
Capacitance 2200 µF
Tolerance ±20%
Voltage - Rated 35 V
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 1.2 A @ 120 Hz
Ripple Current @ High Frequency 2 A @ 100 kHz
Impedance 41 mOhms
Dimension 0.630" Dia (16.00mm)
Height - Seated (Max) 0.866" (22.00mm)
Surface Mount Land Size 0.669" L x 0.669" W (17.00mm x 17.00mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names Q12485386,1189-3564-2,1189-3564-1,1189-3564-6
Standard Package 75
Win Source Part Number 965692-35TRV2200M16X21.5
Ultra Librarian 3D Model Ultra Librarian 35TRV2200M16X21.5 CAD Model

Description

The TRV2200M16X21.5 is an aluminum electrolytic capacitor manufactured by Rubycon.

  • Capacitance: 2200 µF
  • Voltage Rating: 35V
  • Tolerance: ±20%
  • Ripple Current: 1.2A @ 120 Hz and 2A @ 100 kHz
  • Mounting: Surface Mount
  • Dimension: 0.630" Dia (16.00mm)
  • Package: Radial, Can - SMD
  • Temperature Range: -40°C to 105°C
