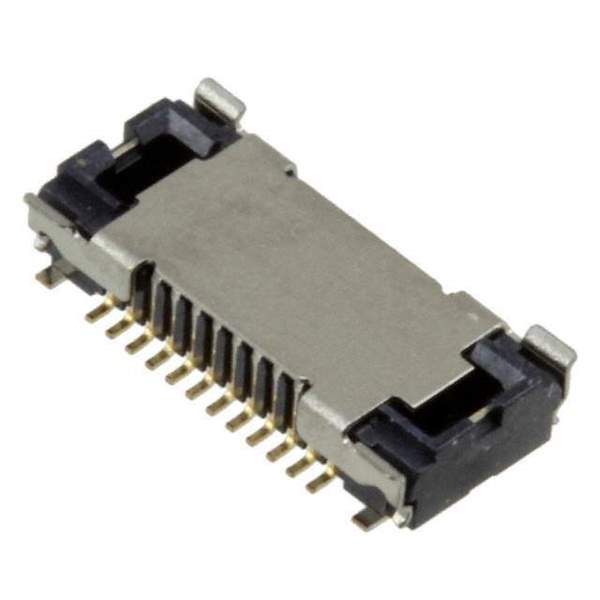

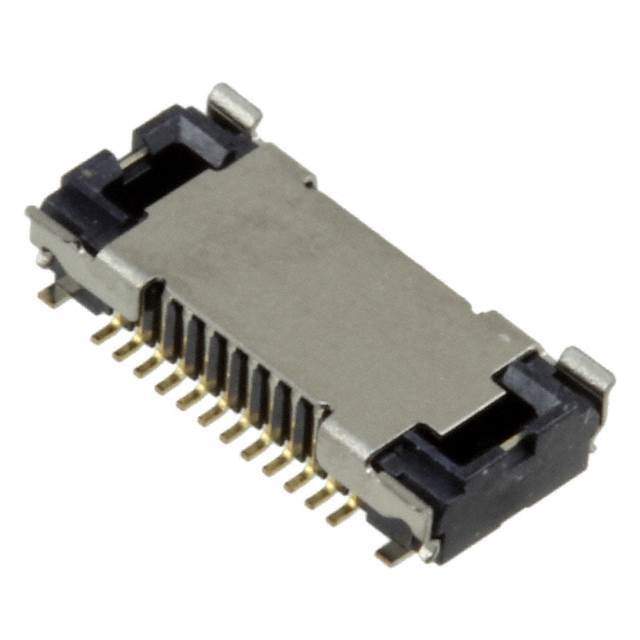

The AXT324164 is a rectangular connector manufactured by Panasonic, designed for flexible printed circuit (FPC) or flexible flat cable (FFC) connections. These connectors are known for their reliability and compact design, making them suitable for a wide range of applications where space is limited.

Applications

• FPC/FFC Connections
• LCD Displays
• Mobile Devices
• Digital Cameras
• Consumer Electronics

Features

• Rectangular Connector Design
• Zero Insertion Force (ZIF) or Low Insertion Force (LIF) Options
• Fine Pitch Contact Arrangement
• Surface Mount Technology (SMT) Compatible
• Compact Size

Benefits

• Ensures a secure and reliable connection with FPC/FFC cables
• Simplifies cable insertion and removal
• Maximizes board space utilization
• Suitable for automated assembly processes
• Enables miniaturization of electronic devices

Additional Details

The AXT324164 connector series offers ZIF and LIF options for ease of use and secure connectivity. Its fine pitch contact arrangement allows for high-density connections in compact designs. It is designed for surface mount technology (SMT) which makes it ideal for automated assembly. For detailed specifications, including pin configuration, voltage, and current ratings, designers should refer to the product datasheet. These connectors play a crucial role in connecting displays, cameras and other components within electronic devices.

Specifications (Typical):

• Number of Contacts: Varies depending on the specific part number (e.g., 24, 32, or more)
• Pitch: Typically 0.5mm or 1.0mm
• Voltage Rating: Typically 50V
• Current Rating: Typically 0.5A per contact
• Operating Temperature: -25°C to +85°C
