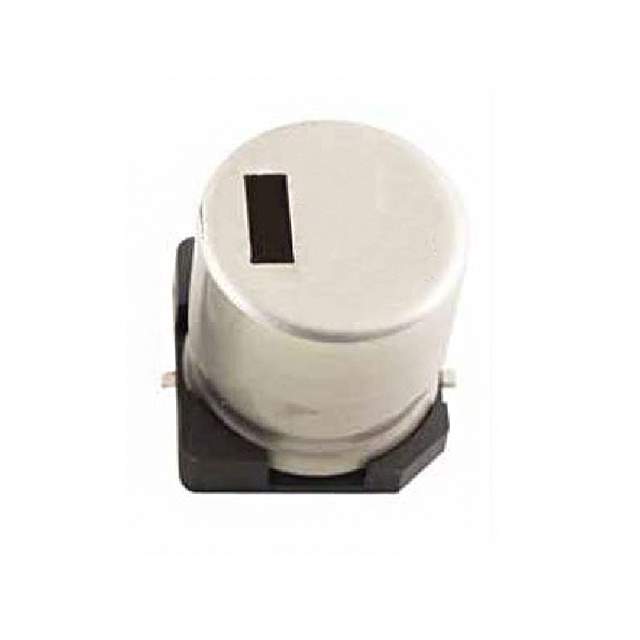

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series TRV
Package Tape & Reel
Capacitance 1000 µF
Tolerance ±20%
Voltage - Rated 35 V
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 870 mA @ 120 Hz
Ripple Current @ High Frequency 1.45 A @ 100 kHz
Impedance 66 mOhms
Dimension 0.630" Dia (16.00mm)
Height - Seated (Max) 0.669" (17.00mm)
Surface Mount Land Size 0.669" L x 0.669" W (17.00mm x 17.00mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 1189-3562-6,1189-3562-2,1189-3562-1
Standard Package 125
Win Source Part Number 973180-35TRV1000M16X16.5
Ultra Librarian 3D Model Ultra Librarian 35TRV1000M16X16.5 CAD Model

Description

The 973180-35TRV1000M16X16.5 is an aluminum electrolytic capacitor manufactured by Rubycon.

  • Capacitance: 1000μF
  • Voltage Rating: 35V
  • Tolerance: ±20%
  • Impedance: 66 mOhms
  • Ripple Current: 870mA @ 120Hz
  • Lifetime: 10000 hours @ 105°C
  • Mounting: Surface Mounted
  • Surface Mount Land Size: 0.669" L x 0.669" W (17.00mm x 17.00mm)
  • Temperature Range: -40°C to 105°C
  • Dimension: 0.630" Dia (16.00mm)
  • Series: TRV
  • MSL Level: 1 (Unlimited)
  • REACH: Unaffected
