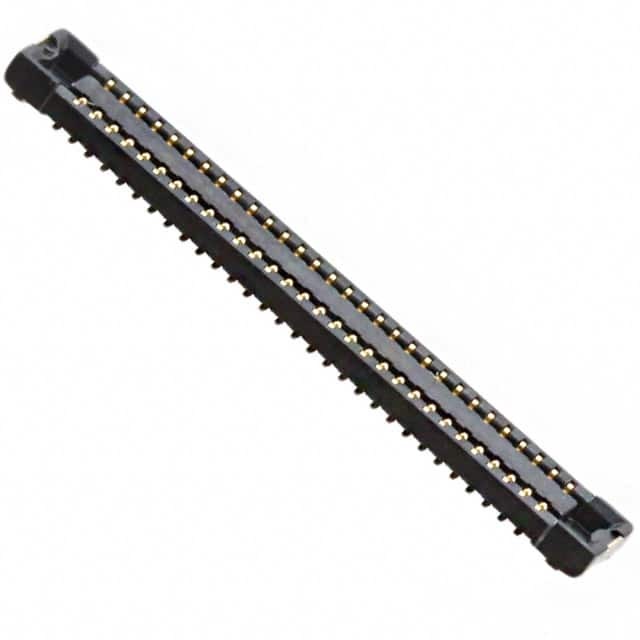

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Panasonic
Series A4S
Package Tape & Reel
Product Status Active
Connector Type Socket, Center Strip Contacts
Number of Positions 60
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.8mm, 1mm
Height Above Board 0.030" (0.75mm)
Base Product Number AXE560
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 862735-AXE560127
Ultra Librarian 3D Model Ultra Librarian AXE560127 CAD Model

Description

The Panasonic AXE560127 is a rectangular connector array with 60 positions. It features a pitch of 0.016" (0.40mm) and has center strip contacts.

  • Positions: 60
  • Pitch: 0.016" (0.40mm)
  • Contact Type: Center strip contacts
  • Mounting: Surface mountable
  • Packaging: Tape & reel packaging
  • Package Quantity: 5,000 pcs per package
  • Height Above the Board: 0.030" (0.75mm)
  • Stacking Heights: Compatible with stacking heights of 0.8mm and 1mm
  • Contact Finish: Gold contact finish
  • Features: Solder retention
  • Temperature Range: -40°C to 85°C
  • MSL: 1 (Unlimited)
  • Series: A4S series
  • Suitable for: Various board-to-board interconnect applications
