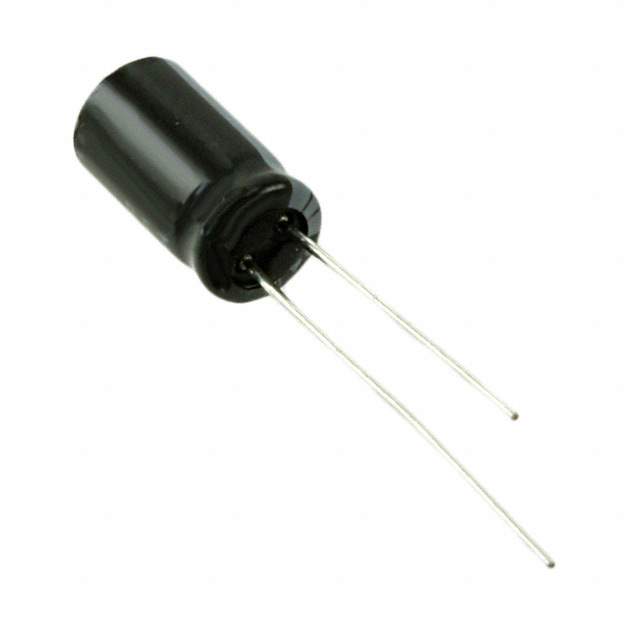

25YXJ220M6.3X11 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Rubycon
Packaging Bulk
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 7000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 280 mA @ 120 Hz
Ripple Current @ High Frequency 400 mA @ 100 kHz
Impedance 220 mOhms
Lead Spacing 0.098" (2.50mm)
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.492" (12.50mm)
Mounting Through Hole
Case / Package Radial, Can
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number 1189-2913,25YXJ220M6.3X11-ND
Standard Package 2,000
Win Source Part Number 1330246-25YXJ220M6.3X11
Ultra Librarian 3D Model Ultra Librarian 25YXJ220M6.3X11 CAD Model

Description

The Rubycon YXJ series aluminum electrolytic capacitors are designed for general purpose applications.

  • Capacitance: 220 µF
  • Voltage Rating: 25 V
  • Tolerance: ±20%
  • Impedance: 220 mOhms
  • ESR (Equivalent Series Resistance): Not Specified
  • Lifetime @ Temp.: 7000 hours @ 105°C
  • Polarization: Polar
  • Mounting Type: Through Hole
  • Package / Case: Radial, Can
  • Height - Seated (Max): 12.50mm
  • Ripple Current @ Low Frequency: 280 mA @ 120 Hz
  • Ripple Current @ High Frequency: 400 mA @ 100 kHz
  • ROHS Status: ROHS3 Compliant
  • ECCN: EAR99
