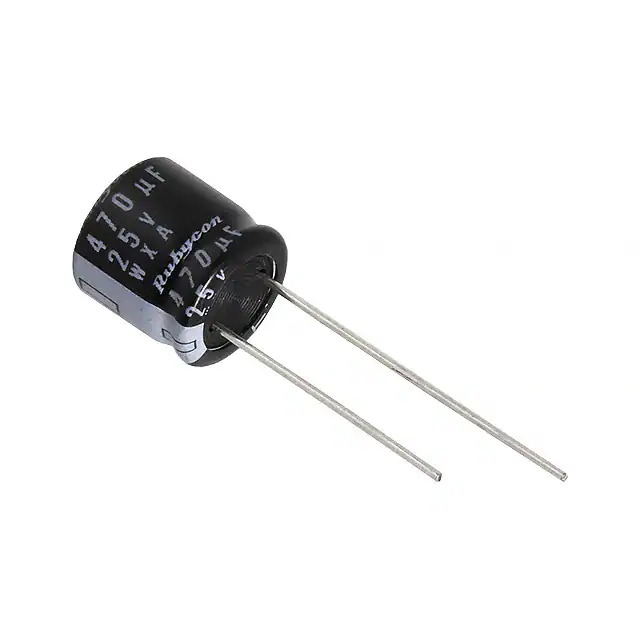

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series WXA
Package Bulk
Product Status Active
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 370 mA @ 120 Hz
Ripple Current @ High Frequency 444 mA @ 10 kHz
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357873-25WXA470MEFC10X9
Ultra Librarian 3D Model Ultra Librarian 25WXA470MEFC10X9 CAD Model

Description

The Rubycon 1357873-25WXA470MEFC10X9 is a high-quality aluminum electrolytic capacitor designed for automotive applications.

  • Capacitance: 470 µF
  • Voltage Rating: 25 V
  • Temperature Range: -55°C to 105°C
  • Tolerance: ±20%
  • Ripple Current (Low Frequency): 370 mA @ 120 Hz
  • Ripple Current (High Frequency): 444 mA @ 10 kHz
  • Lifetime: 2000 hours @ 105°C
  • Package: Radial, Can
  • Mounting: Through Hole
  • Series: WXA
  • Packaging: Bulk
  • AEC-Q200: Yes
  • REACH: Unaffected
