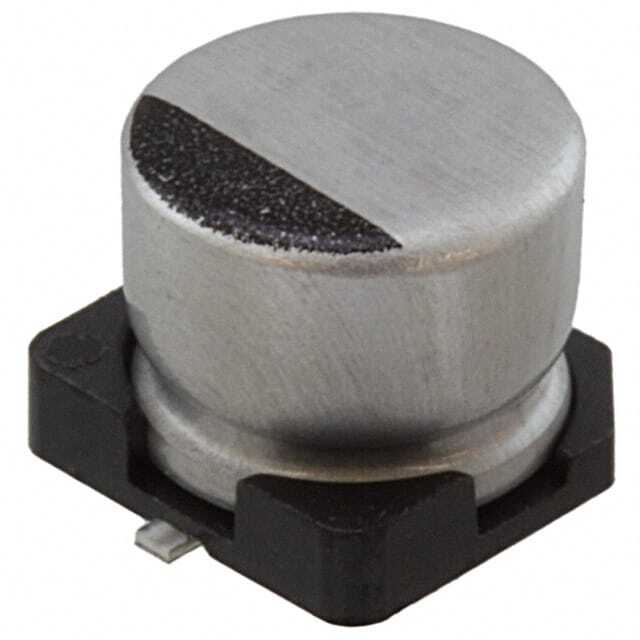

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series SEV
Package Tape & Reel
Product Status Active
Capacitance 33 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 54 mA @ 120 Hz
Ripple Current @ High Frequency 81 mA @ 10 kHz
Lead Spacing -
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.217" (5.50mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360259-25SEV33M6.3X5.5
Ultra Librarian 3D Model Ultra Librarian 25SEV33M6.3X5.5 CAD Model

Description

The 25SEV33M6.3X5.5 is an aluminum electrolytic capacitor from Rubycon's SEV series.

  • Series: SEV
  • Applications: Automotive
  • Capacitance: 33μF
  • Voltage - Rated: 25V
  • Tolerance: ±20%
  • Ripple Current - Low Frequency: 54mA @ 120Hz
  • Ripple Current - High Frequency: 81mA @ 10kHz
  • Mounting Type: Surface Mount
  • Package / Case: Radial, Can - SMD
  • Packaging: Tape & Reel (TR)
  • Size / Dimension: 0.248" (6.30mm) Dia
  • Height - Seated (Max): 0.217" (5.50mm)
  • Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
  • RoHS Status: RoHS Compliant
  • REACH Status: REACH unaffected
  • ECCN: EAR99
