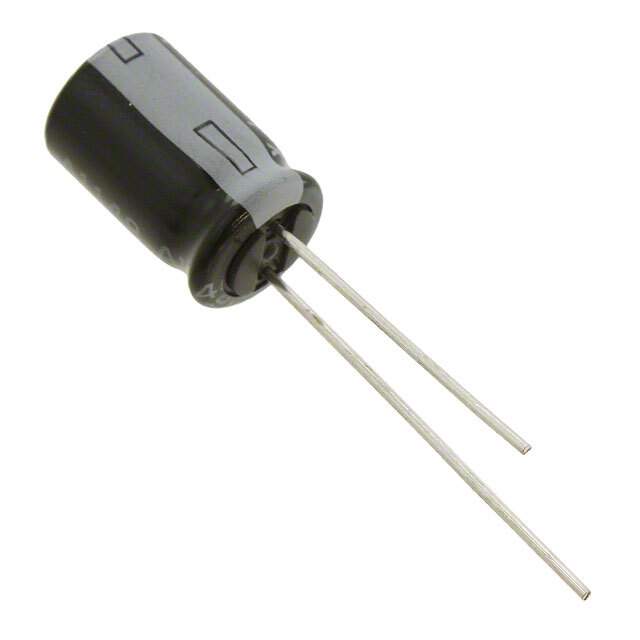

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series PK
Package Bulk
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 550 mA @ 120 Hz
Ripple Current @ High Frequency 660 mA @ 10 kHz
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.512" (13.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1338442-25PK470MEFC8X11.5
Ultra Librarian 3D Model Ultra Librarian 25PK470MEFC8X11.5 CAD Model

Description

The Rubycon PK series aluminum electrolytic capacitor is a reliable and high-quality component for general-purpose applications.

  • Capacitance: 470 µF
  • Voltage - Rated: 25 V
  • Tolerance: ±20%
  • Standard Package: 2,000
  • ESR (Equivalent Series Resistance): Not Specified
  • Lifetime @ Temp.: 2000 Hrs @ 85°C
  • Polarization: Polarized
  • Lead Spacing: 0.138" (3.50mm)
  • Mounting Type: Through Hole
  • Package / Case: Radial, Can
  • Operating Temperature: -40°C ~ 85°C
  • REACH: Unaffected
  • ECCN: EAR99
