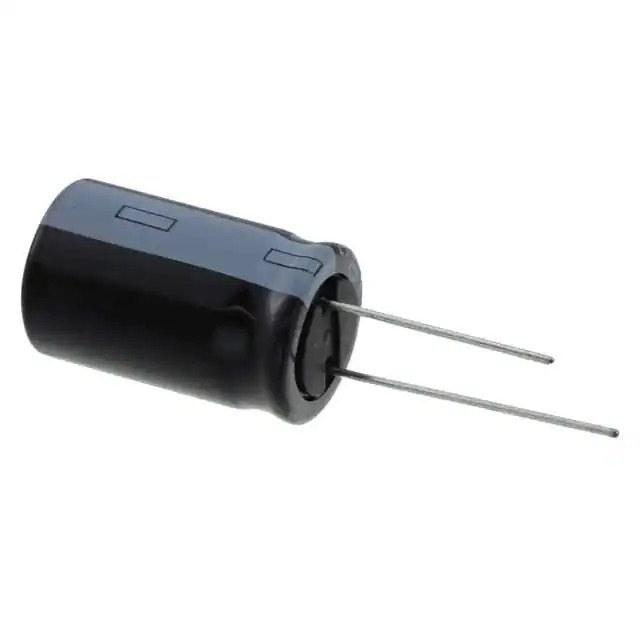

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series BXC
Package Bulk
Product Status Active
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 250 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 188 mA @ 120 Hz
Ripple Current @ High Frequency 470 mA @ 100 kHz
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.709" (18.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357890-250BXC22MEFC10X16
Ultra Librarian 3D Model Ultra Librarian 250BXC22MEFC10X16 CAD Model

Description

The Rubycon 1357890-250BXC22MEFC10X16 is a general-purpose aluminum electrolytic capacitor with a capacitance of 22 µF and a voltage rating of 250 V from Rubycon.

  • Capacitance: 22 µF
  • Voltage Rating: 250 V
  • Temperature Range: -25°C to 105°C
  • Tolerance: ±20%
  • Ripple Current: 188 mA @ low frequency (120 Hz), 470 mA @ high frequency (100 kHz)
  • Lifetime: 10000 hours @ 105°C
  • Mounting Type: Through Hole
  • Style: Radial, Can
  • Series: BXC
  • Packaging: Bulk
  • REACH: Unaffected
  • ECCN: EAR99
