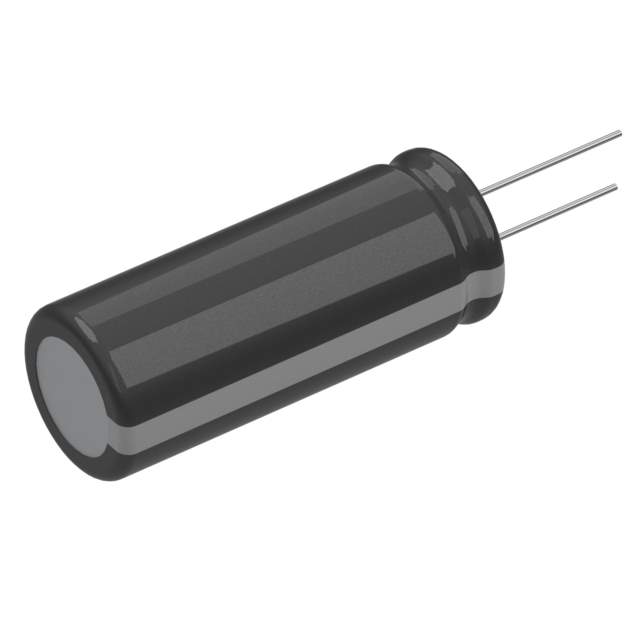

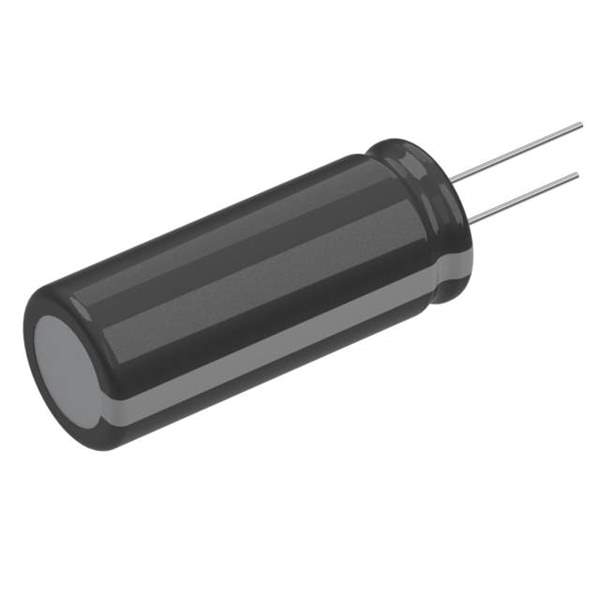

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series TXW
Package Bulk
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 200 V
Lifetime @ Temp. 12000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 1.58 A @ 120 Hz
Ripple Current @ High Frequency 2.21 A @ 100 kHz
Lead Spacing 0.295" (7.50mm)
Size / Dimension 0.709" Dia (18.00mm)
Height - Seated (Max) 1.673" (42.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
Standard Package 200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1340849-200TXW470MEFR18X40
Ultra Librarian 3D Model Ultra Librarian 200TXW470MEFR18X40 CAD Model

Description

The Rubycon TXW series aluminum electrolytic capacitor is a general-purpose component that is ideal for a wide range of applications.

  • Manufacturer: Rubycon
  • Series: TXW
  • Type: Aluminum Electrolytic Capacitor
  • Application: General Purpose
  • Capacitance: 470 µF
  • Voltage Rating: 200 V
  • Package/Case: Radial, Can
  • Height: 1.673" (42.50mm)
  • Diameter: 0.709" (18.00mm)
  • Lifetime: 12000 Hrs @ 105°C
