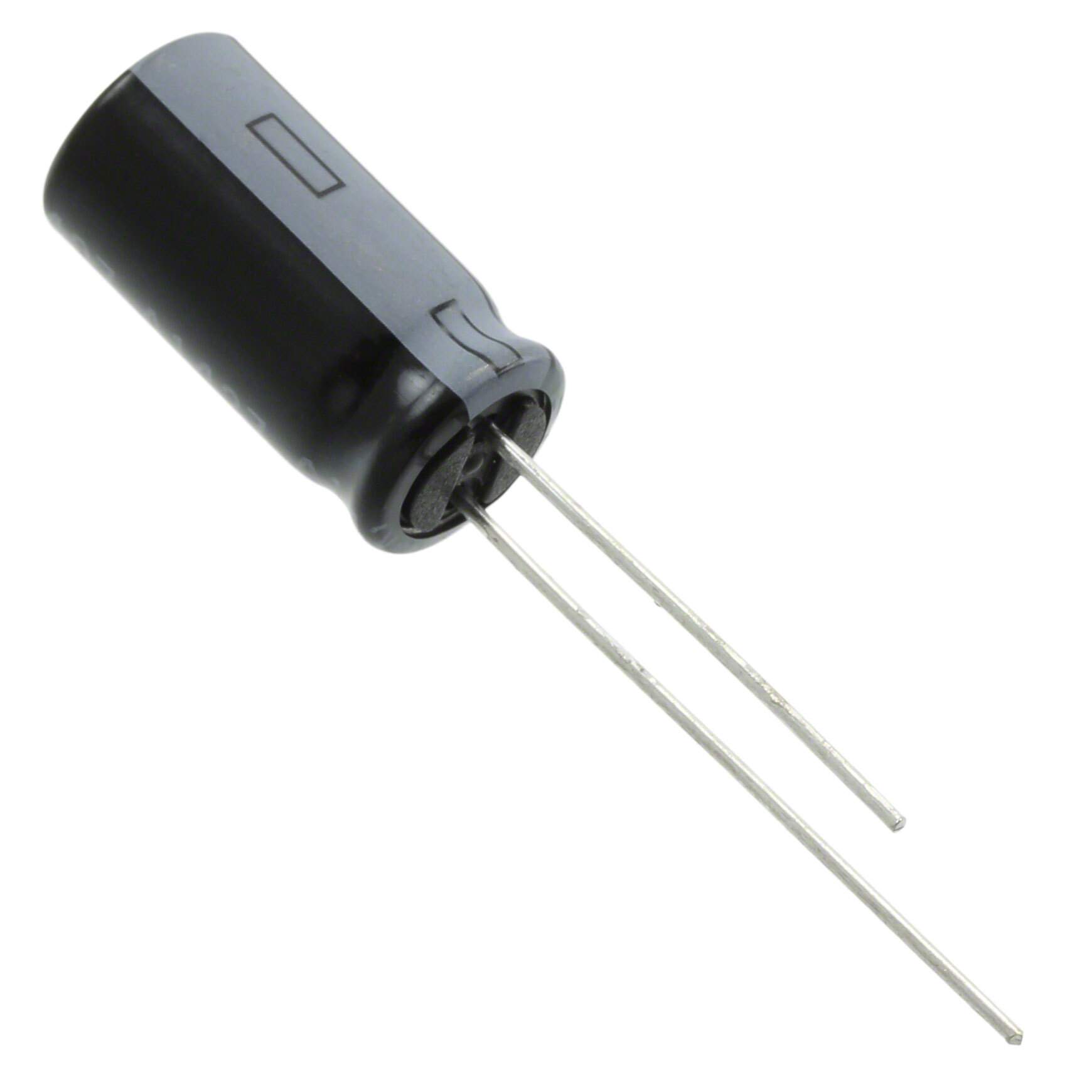

Same model may have multiple batches, images only for reference.

16ZLH680MEFC8X16

Name: 16ZLH680MEFC8X16
Brand: Rubycon
SKU: 1331352
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	16ZLH680MEFC8X16
Manufacturer	Rubycon
Catalog	Aluminum Capacitors
Description	CAP ALUM 680UF 20% 16V RADIAL / 680 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Manufacturer	Rubycon
Packaging	Bulk
Capacitance	680 µF
Tolerance	±20%
Voltage - Rated	16 V
Lifetime @ Temp.	8000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	687.5 mA @ 120 Hz
Ripple Current @ High Frequency	1.25 A @ 100 kHz
Impedance	45 mOhms
Lead Spacing	0.138" (3.50mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.689" (17.50mm)
Mounting	Through Hole
Case / Package	Radial, Can
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Part Number	1189-2935,16ZLH680MEFC8X16-ND
Standard Package	1,000
Win Source Part Number	1331352-16ZLH680MEFC8X16
Ultra Librarian 3D Model	Ultra Librarian 16ZLH680MEFC8X16 CAD Model

Alternative Products

Description

The Rubycon 1331352-16ZLH680MEFC8X16 is an aluminum electrolytic capacitor with a capacitance of 680 µF and a voltage rating of 16 V.

Tolerance: ±20%
Impedance: 45 mOhms
Ripple Current (Low Frequency): 687.5 mA
Ripple Current (High Frequency): 1.25 A
Polarization: Polarized
Mounting Type: Through-Hole
Size/Dimension: 0.315" Dia (8.00mm)
Height: 0.689" (17.50mm)
Application: General Purpose
Lifetime: 8000 hours @ 105°C
Package: Radial, Can
ROHS3 Compliant: Yes
