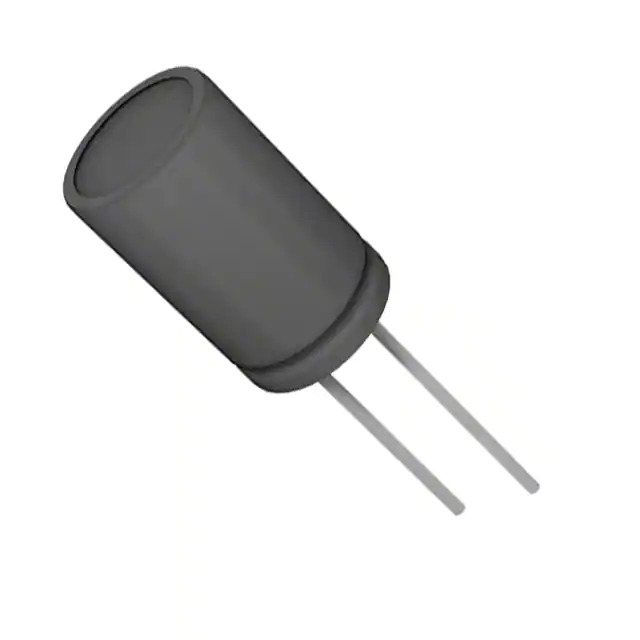

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series YXJ
Product Status Active
Capacitance 1000 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 907.5 mA @ 120 Hz
Ripple Current @ High Frequency 1.21 A @ 100 kHz
Impedance 62 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.689" (17.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358297-16YXJ1000MT810X16
Ultra Librarian 3D Model Ultra Librarian 16YXJ1000MT810X16 CAD Model

Description

The Rubycon 1358297-16YXJ1000MT810X16 is a through-hole aluminum electrolytic capacitor with a capacitance of 1000 µF and a voltage rating of 16 V.

  • Temperature Range: -40°C to 105°C
  • Application: General Purpose
  • Package: Radial, Can
  • Mounting Type: Through Hole
  • Lead Spacing: 0.197" (5.00mm)
  • Lifetime: 10000 Hours @ 105°C
  • Ripple Current: 907.5 mA @ Low Frequency, 1.21 A @ High Frequency
  • Tolerance: ±20%
  • Impedance: 62 mOhms
  • Product Status: Active
  • REACH: Unaffected
  • ECCN: EAR99
  • Size / Dimension: 0.394" Dia (10.00mm)
  • Height - Seated (Max): 0.689" (17.50mm)
  • Series: YXJ
  • Manufacturer: Rubycon
