Same model may have multiple batches, images only for reference.

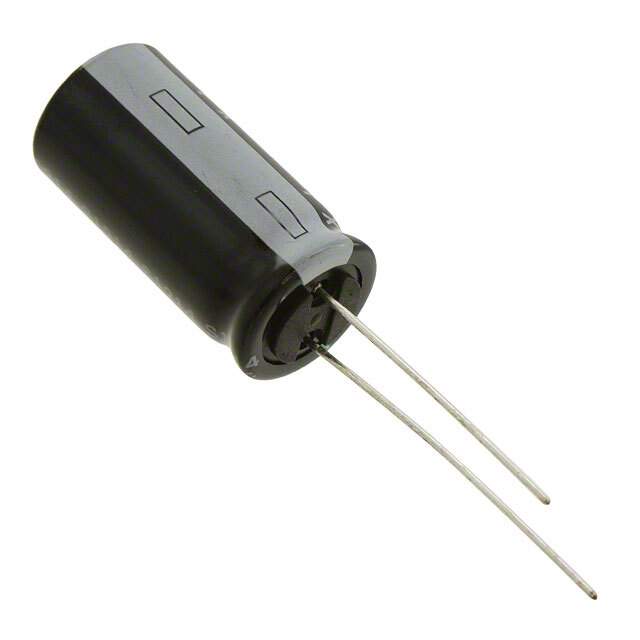

16PX4700MEFC12.5X25 Real Image
Same model may have multiple batches, images only for reference.

16PX4700MEFC12.5X25

Part No 16PX4700MEFC12.5X25
Manufacturer Rubycon
Catalog Aluminum Capacitors
Description CAP ALUM 4700UF 20% 16V RADIAL / 4700 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series PX
Package Bulk
Capacitance 4700 µF
Tolerance ±20%
Voltage - Rated 16 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 1.65 A @ 120 Hz
Ripple Current @ High Frequency 1.8975 A @ 10 kHz
Lead Spacing 0.197" (5.00mm)
Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 1.063" (27.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Standard Package 1,000
Win Source Part Number 1133701-16PX4700MEFC12.5X25
Ultra Librarian 3D Model Ultra Librarian 16PX4700MEFC12.5X25 CAD Model

Description

The Rubycon 1133701-16PX4700MEFC12.5X25 capacitor is an aluminum electrolytic capacitor designed for general-purpose applications.

  • Capacitance: 4700 µF
  • Voltage Rating: 16 V
  • Tolerance: ±20%
  • Lead Spacing: 0.197" (5.00mm)
  • ESR (Equivalent Series Resistance): Not specified
  • Polarization: Polarized
  • Package: Radial, can
  • Maximum Height: 1.063" (27.00mm)
  • Diameter: 0.492" (12.50mm)
  • Operating Temperature Range: -55°C ~ 105°C
  • Lifetime: 2000 Hrs @ 105°C
  • Ripple Current (Low Frequency): 1.65 A @ 120 Hz
  • Ripple Current (High Frequency): 1.8975 A @ 10 kHz
