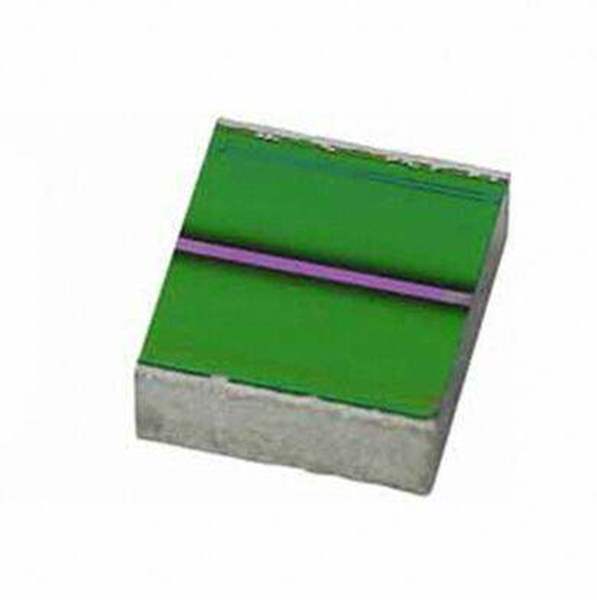

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Rubycon
Category Capacitors Film Capacitors
Part Status Active
Capacitance 1 µF
Tolerance ±20%
Operating Temperature -55°C ~ 125°C
Mounting Type Surface Mount
Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.063" (1.60mm)
Termination Solder Pads
Applications DC Link, DC Filtering
Win Source Part Number WS1306589-16MU105MA23216
Ultra Librarian 3D Model Ultra Librarian 16MU105MA23216 CAD Model

Description

1 µF Film Capacitor 16V Acrylic, Metallized 1206 (3216 Metric)
