Same model may have multiple batches, images only for reference.

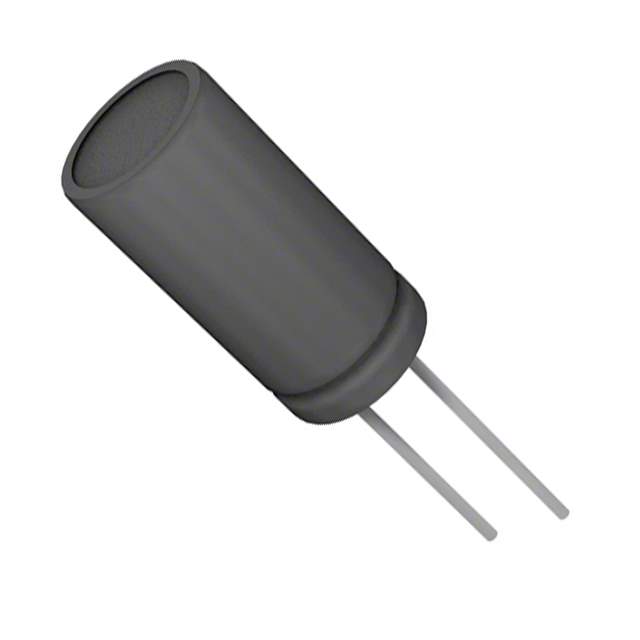

10ZLK1500M10X20 Real Image
Same model may have multiple batches, images only for reference.

10ZLK1500M10X20

Part No 10ZLK1500M10X20
Manufacturer Rubycon
Catalog Aluminum Capacitors
Description CAP ALUM 1500UF 20% 10V RADIAL / Cap Aluminum Lytic 1500uF 10V 20% (10 X 20mm) Radial 5mm 2880mA 5000h 105°C Bulk
Datasheet
10ZLK1500M10X20 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Rubycon
Series ZLK
Packaging Bulk
Capacitance 1500μF
Tolerance ±20%
Voltage Rating DC 10V
Lifetime @ Temp. 5000 Hrs @ 105°C
Operating Temperature Range -40°C ~ 105°C
Applications General
Ripple Current - Low Frequency 864mA @ 120Hz
Ripple Current - High Frequency 2.88A @ 100kHz
Impedance 28 mOhm
Lead Spacing 0.197" (5.00mm)
Dimension 0.394" Dia (10.00mm)
Height - Seated (Maximum) 0.866" (22.00mm)
Mounting Style Through Hole
Package Radial, Can
Win Source Part Number 777789-10ZLK1500M10X20
Popularity Medium
Supply and Demand Status Limited
Family Name ZLK
Introduction Date September 15, 2009
ECCN EAR99
Country of Origin Indonesia, Japan
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian 10ZLK1500M10X20 CAD Model

Description

The Rubycon ZLK series capacitor is designed for general applications.

  • Capacitance: 1500μF
  • Voltage Rating: 10V
  • Impedance: 28 mOhm
  • Lifetime: 5000 hours @ 105°C
  • Polarization: Unpolarized
  • Mounting Style: through hole
  • Package/Case Type: radial, can
  • Temperature Range: -40°C to 105°C
