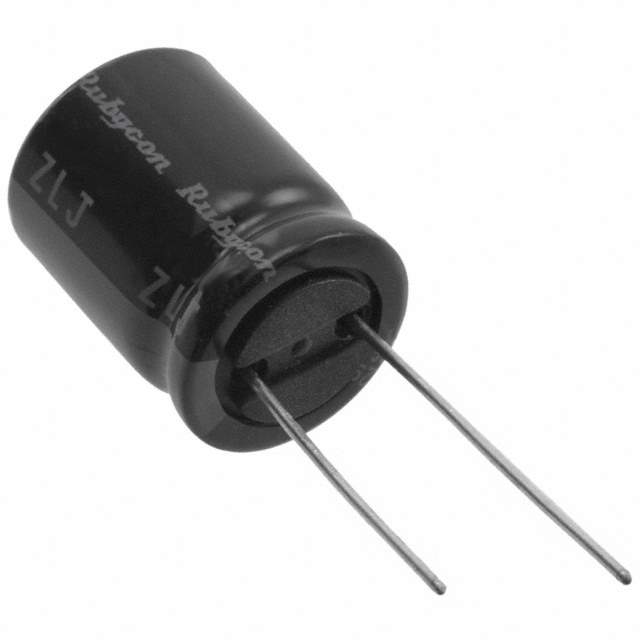

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Rubycon
Series YXJ
Packaging Bulk
Capacitance 10000μF
Tolerance ±20%
Voltage Rating 10V
Lifetime @ Temp. 8000 Hrs @ 105°C
Operating Temperature Range -40°C ~ 105°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 2.76A @ 120Hz
Ripple Current - High Frequency 3.45A @ 100kHz
Impedance 19 mOhm
Lead Spacing 0.295" (7.50mm)
Dimension 0.630" Dia (16.00mm)
Height - Seated (Maximum) 1.319" (33.50mm)
Mounting Style Through Hole
Package Radial, Can
Win Source Part Number 760201-10YXJ10000M16X31.5
Popularity Medium
Supply and Demand Status Limited
Family Name YXJ
Introduction Date September 29, 2010
ECCN EAR99
Country of Origin Indonesia, Japan
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 10YXJ10000M16X31.5 CAD Model

Description

The Rubycon 760201-10YXJ10000M16X31.5 is a radial, polar capacitor with a capacitance of 10000μF and a voltage rating of 10V.

  • Tolerance: ±20%
  • Lead Spacing: 0.295" (7.50mm)
  • Impedance: 19 mOhm
  • Ripple Current (Low Frequency): 2.76A @ 120Hz
  • Ripple Current (High Frequency): 3.45A @ 100kHz
  • Height: 1.319" (33.50mm)
  • Diameter: 0.630" (16.00mm)
  • Applications: General
  • Package: Can
  • Operating Temperature Range: -40°C to 105°C
  • Lifetime at Temperature: 8000 Hrs @ 105°C
  • Lead-Free: Yes
  • RoHS Compliant: Yes
