Same model may have multiple batches, images only for reference.

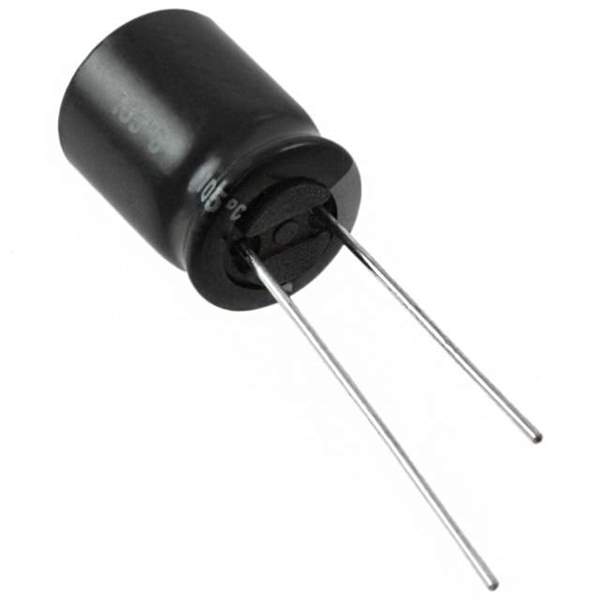

100ZL47MEFC10X12.5 Real Image
Same model may have multiple batches, images only for reference.

100ZL47MEFC10X12.5

Part No 100ZL47MEFC10X12.5
Manufacturer Rubycon
Catalog Aluminum Capacitors
Description CAP ALUM 47UF 20% 100V RADIAL  /  47 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series ZL
Package Bulk
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 100 V
Lifetime @ Temp. 4000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 180 mA @ 120 Hz
Ripple Current @ High Frequency 450 mA @ 100 kHz
Impedance 240 mOhms
Lead Spacing 0.197" (5.00mm)
Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.551" (14.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 1189-4148,100ZL47MEFC10X12.5-ND
Standard Package 1,000
Win Source Part Number 1180700-100ZL47MEFC10X12.5
Ultra Librarian 3D Model Ultra Librarian 100ZL47MEFC10X12.5 CAD Model

Description

The 1180700-100ZL47MEFC10X12.5 is an aluminum electrolytic capacitor that belongs to the Capacitors category of electronic components. 1180700-100ZL47MEFC10X12.5 is from Rubycon.

  • Capacitance: 47 µF
  • Voltage Rating: 100V
  • Tolerance: ±20%
  • Lead Spacing: 0.197" (5.00mm)
  • Height: 0.551" (14.00mm)
  • Diameter: 0.394" (10.00mm)
  • Lifetime @ Temperature: 4000 Hrs @ 105°C
  • Polar: yes
  • Ripple Current (Low Frequency): 180 mA @ 120 Hz
  • Ripple Current (High Frequency): 450 mA @ 100 kHz
  • Temperature Range: -40°C to 105°C
