Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series Dynamic D-3100
Package Bulk
Connector Type Header
Contact Type Tab
Pitch - Mating 0.150" (3.81mm)
Number of Positions 16
Number of Rows 2
Row Spacing - Mating 0.200" (5.08mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Detent Lock
Contact Length - Post 0.150" (3.81mm)
Insulation Height 0.850" (21.59mm)
Contact Shape Rectangular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic, Polyester, Glass Filled
Features Board Lock
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Voltage Rating 250V
Applications General Purpose, Industrial
Base Product Number 178327
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names A29522-NDR,A29522,2266-178327-3
Standard Package 12
Win Source Part Number 1218287-178327-3
Ultra Librarian 3D Model Ultra Librarian 178327-3 CAD Model

Description

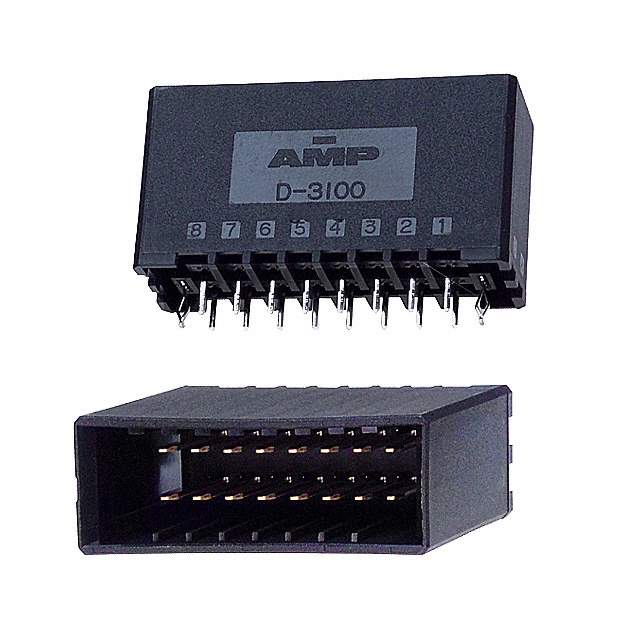

The TE Connectivity AMP Connectors Dynamic D-3100 1218287-178327-3 is a male pin header with a board lock feature.

  • Contact Type: tab
  • Positions Loaded: all
  • Shrouded: shrouded-4 wall
  • Mounting Type: through-hole
  • Pitch-Mating: 0.150” (3.81mm)
  • Row Spacing-Mating: 0.200” (5.08mm)
  • Contact Finish-Mating: gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Contact Finish-Post: tin
  • Insulation Material: thermoplastic, polyester, and glass filled
  • Application: general purpose and industrial
