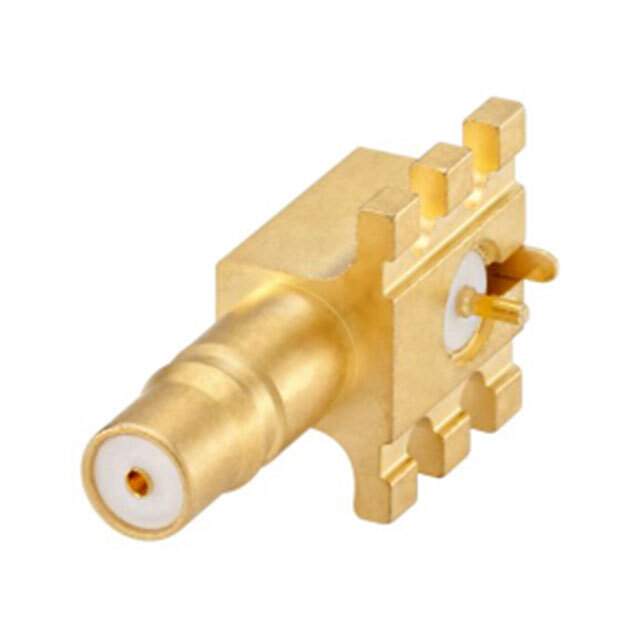

28K201-40ML5 Real Image
Same model may have multiple batches, images only for reference.

28K201-40ML5

Part No 28K201-40ML5
Manufacturer Rosenberger
Catalog Coaxial Connectors (RF)
Description CONN QMA JACK R/A 50OHM SOLDER / QMA Connector Jack, Female Socket 50Ohm Surface Mount, Right Angle; Through Hole Solder
Datasheet
28K201-40ML5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr Rosenberger
Package Bulk
Connector Style QMA
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Surface Mount, Right Angle; Through Hole
Fastening Type Snap-On
Frequency - Max 18 GHz
Number of Ports 1
Housing Color Gold
Center Contact Material Beryllium Copper
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -40°C ~ 85°C
Voltage Rating 480 V
Mating Cycles 100
Base Product Number 28K201
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Other Names 166347,1868-1151
Standard Package 25
Win Source Part Number 1171455-28K201-40ML5
Ultra Librarian 3D Model Ultra Librarian 28K201-40ML5 CAD Model

Description

The 1171455-28K201-40ML5 is a QMA connector from Rosenberger.

  • Connector Type: Female socket jack
  • Fastening Type: Snap-on
  • Impedance: 50Ohm
  • Operating Temperature Range: -40°C to 85°C
  • Mounting Type: Surface mount, right-angle, and through-hole
  • Body Finish: Gold
  • Center Contact Material: Beryllium copper with gold plating
  • Ideal for: Various applications, including RF, telecommunications, and test and measurement equipment.
