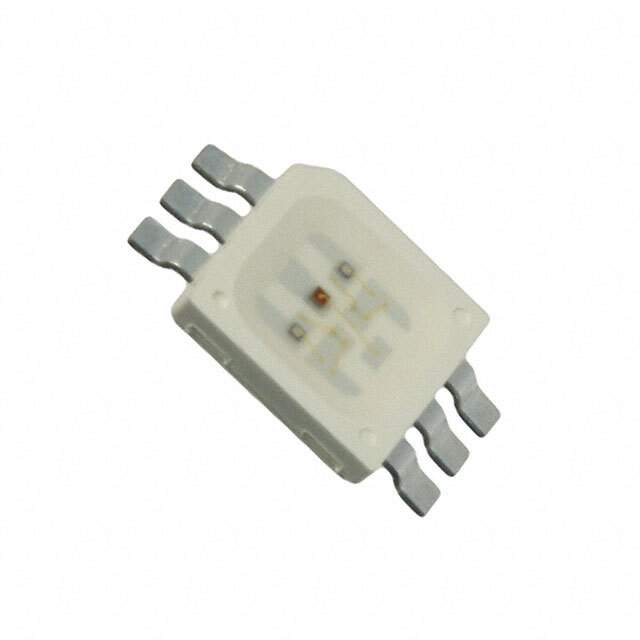

The SMLW56RGB1W1-1-Y is a surface-mount RGB LED manufactured by Rohm Semiconductor. This LED integrates red, green, and blue light-emitting diodes into a single package, providing full-color capabilities for a wide range of applications.

Applications:

• RGB LED displays and signage.
• Status indicators with customizable colors.
• Decorative lighting and mood lighting.
• Gaming peripherals and accessories.
• Consumer electronics.

Features:

• Integrated RGB LED in a compact package.
• High luminous intensity for bright output.
• Wide viewing angle for enhanced visibility.
• Individually controllable red, green, and blue channels.
• Low power consumption for energy efficiency.
• RoHS compliant, ensuring environmental responsibility.

Benefits:

• Simplified circuit design compared to using discrete LEDs.
• Space-saving design for use in compact devices.
• Versatile color mixing capabilities for creating custom colors.
• Precise color control through individual channel adjustment.
• Reduced energy consumption, leading to lower operating costs.
• Environmentally friendly due to RoHS compliance.

Additional Details:

The SMLW56RGB1W1-1-Y requires external current-limiting resistors for each color channel to prevent damage. Refer to the Rohm Semiconductor datasheet for recommended resistor values and forward voltage/current specifications. Proper thermal management is also crucial to ensure optimal performance and lifespan. The surface-mount package is designed for automated assembly, and appropriate soldering techniques should be followed. The color mixing capabilities can be controlled using a microcontroller or dedicated LED driver.

This RGB LED offers a compact and versatile solution for applications requiring full-color illumination and precise color control. Rohm Semiconductor's commitment to quality ensures reliable performance and consistent color output.
