Same model may have multiple batches, images only for reference.

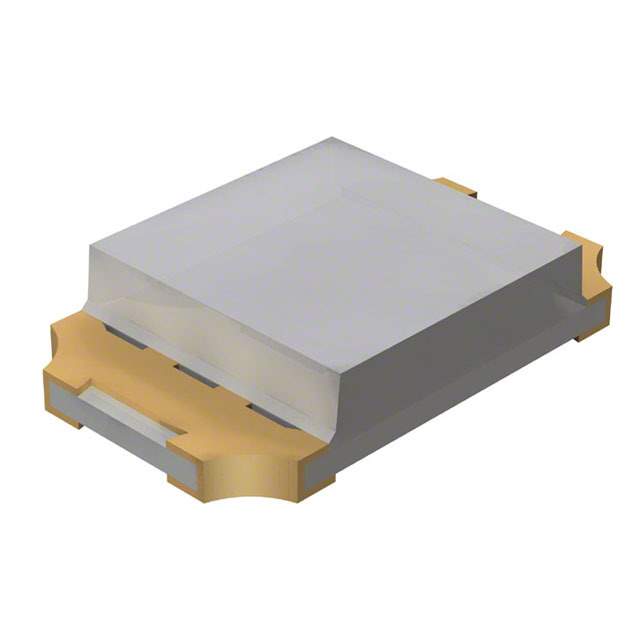

SML-P13FTT86R Real Image
Same model may have multiple batches, images only for reference.

SML-P13FTT86R

Part No SML-P13FTT86R
Manufacturer Rohm Semiconductor
Catalog LED Indication - Discrete
Description LED GREEN CLEAR 1006 SMD / Green 566nm LED Indication - Discrete 2.1V 0402 (1006 Metric)
Datasheet
SML-P13FTT86R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Rohm Semiconductor
Series PicoLED™
Package Tape & Reel
Color Green
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 18mcd
Lens Style Square with Flat Top
Lens Size 0.60mm
Voltage - Forward (Vf) (Typ) 2.1V
Current - Test 20mA
Mounting SMD (SMT)
Wavelength - Dominant 566nm
Package / Case 0402 (1006 Metric)
Supplier Device Package 1006 (0402)
Dimension 1.00mm L x 0.60mm W
Height (Max) 0.25mm
Base Product Number SML-P13
Other Names 846-1196-6,SML-P13FTT86RP,SML-P13FTT86RO,SML-P13FTT86RN,SML-P13FTT86RM,SML-P13FTT86RL,846-1196-2,846-1196-1
Standard Package 5,000
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241665-SML-P13FTT86R
Ultra Librarian 3D Model Ultra Librarian SML-P13FTT86R CAD Model

Description

The PicoLED™ series green LED indication component is an SMD (SMT) mounted device with a standard configuration.

  • Mounting: SMD (SMT)
  • Configuration: Standard
  • Viewing Angle: Not specified
  • Lens Transparency: Colorless, clear
  • Millicandela Rating: 18mcd
  • Forward Voltage: 2.1V
  • Wavelength-Dominant: 566nm
  • Height: 0.25mm
  • Dimension: 1.00mm L x 0.60mm W
  • Lens Style: Square with a flat top
  • Manufacturer: Rohm Semiconductor
  • Package: 5,000 units in a 0402 (1006 Metric) package/case
  • REACH: Unaffected by REACH
  • ECCN: EAR99
