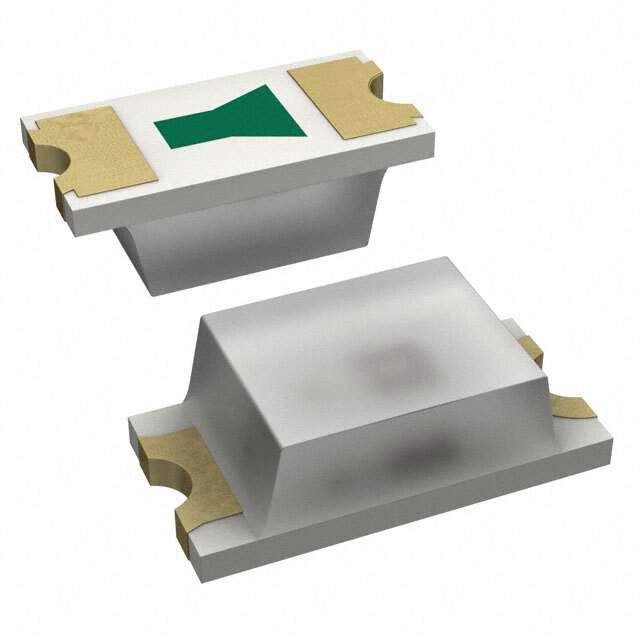

SML-D15UWT86 Real Image
Same model may have multiple batches, images only for reference.

SML-D15UWT86

Part No SML-D15UWT86
Manufacturer Rohm Semiconductor
Catalog LED Indication - Discrete
Description LED RED DIFFUSED 1608 SMD / Red 620nm LED Indication - Discrete 2V 0603 (1608 Metric)
Datasheet
SML-D15UWT86 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Rohm Semiconductor
Series SML-D15
Package Tape & Reel
Color Red
Configuration Standard
Lens Color White
Lens Transparency Diffused
Millicandela Rating 112mcd
Lens Style Rectangle with Flat Top
Lens Size 1.20mm x 0.80mm
Voltage - Forward (Vf) (Typ) 2V
Current - Test 20mA
Mounting SMD (SMT)
Wavelength - Dominant 620nm
Package / Case 0603 (1608 Metric)
Supplier Device Package 1608 (0603)
Dimension 1.60mm L x 0.80mm W
Height (Max) 0.65mm
Base Product Number SML-D15
Other Names SML-D15UWT86DKR,SML-D15UWT86CT,SML-D15UWT86TR
Standard Package 3,000
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241646-SML-D15UWT86
Ultra Librarian 3D Model Ultra Librarian SML-D15UWT86 CAD Model

Description

The Rohm Semiconductor SML-D15UWT86 is a red LED indication device with a millicandela rating of 112mcd.

  • Millicandela Rating: 112mcd
  • Forward Voltage: 2V (typ)
  • Current Test: 20mA
  • Package/Case: 0603 (1608 Metric)
  • Lens Style: Rectangle with flat top
  • Lens Size: 1.20mm x 0.80mm
  • Dimension: 1.60mm L x 0.80mm W
  • Transparency: Diffused lens
