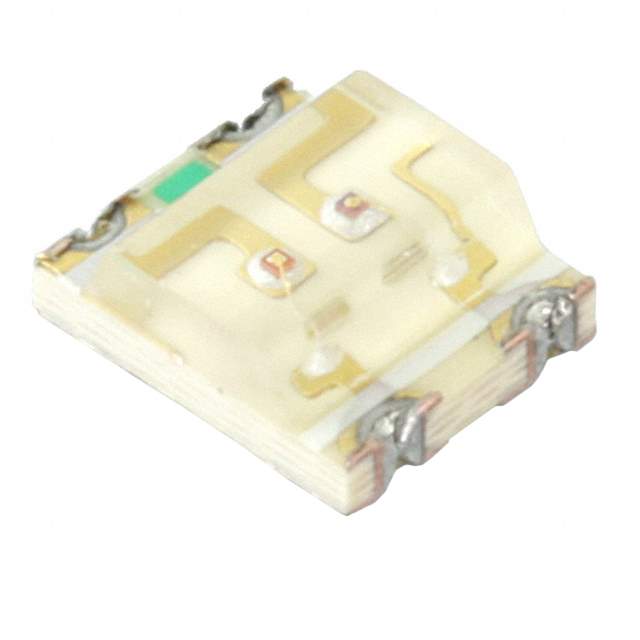

Same model may have multiple batches, images only for reference.

APBL3025SURKCGK-F01

Name: APBL3025SURKCGK-F01
Brand: Kingbright
SKU: 1331753
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	APBL3025SURKCGK-F01
Manufacturer	Kingbright
Catalog	LED Indication - Discrete
Description	LED GREEN/RED CLEAR SMD / Green, Red 570nm Green, 630nm Red LED Indication - Discrete 2.1V Green, 1.95V Red 4-SMD, No Lead
Datasheet	APBL3025SURKCGK-F01 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Optoelectronics>LED Indication - Discrete
Manufacturer	Kingbright
Packaging	Reel - TR
Color	Green, Red
Configuration	Independent
Lens Color	Colorless
Lens Transparency	Clear
Millicandela Rating	150mcd Green, 300mcd Red
Lens Style	Rectangle with Flat Top
Lens Size	2.00mm x 2.50mm
Voltage - Forward (Vf) (Typ)	2.1V Green, 1.95V Red
Current - Test	20mA Green, 20mA Red
Viewing Angle	50°
Mounting	Surface Mount
Wavelength - Dominant	570nm Green, 630nm Red
Wavelength - Peak	574nm Green, 645nm Red
Case / Package	4-SMD, No Lead
Supplier Device Package	SMD
Size / Dimension	3.00mm L x 2.50mm W
Height (Max)	1.40mm
Base Product Number	APBL3025
RoHS Status	ROHS3 Compliant
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.41.0000
Other Part Number	APBL3025SURKCGK-F01-ND,754-1648-1,754-1648-2,754-1648-6
Standard Package	2,000
Win Source Part Number	1331753-APBL3025SURKCGK-F01
Ultra Librarian 3D Model	Ultra Librarian APBL3025SURKCGK-F01 CAD Model

Alternative Products

Description

The Kingbright 1331753-APBL3025SURKCGK-F01 is a green and red SMD LED with a viewing angle of 50 degrees.

Viewing Angle: 50 degrees
Millicandela Rating: 150mcd for green and 300mcd for red
Lens Style: rectangle with a flat top
Lens Size: 2.00mm x 2.50mm
Forward Voltage: 2.1V for green and 1.95V for red
Current-Test: 20mA for both colors
Wavelength-Dominant: 570nm for green and 630nm for red
Wavelength-Peak: 574nm for green and 645nm for red
Package: 4-SMD, no-lead
Height: 1.40mm

It is ideal for use in optoelectronics applications.
