Same model may have multiple batches, images only for reference.

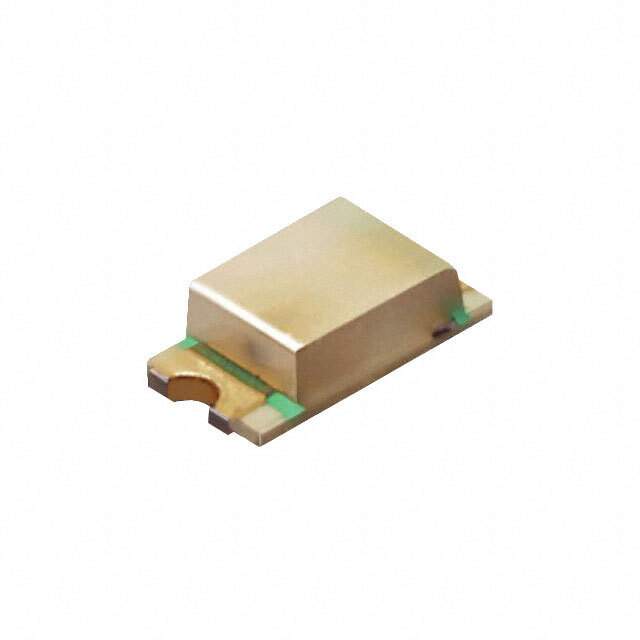

SML-D13UWT86C Real Image
Same model may have multiple batches, images only for reference.

SML-D13UWT86C

Part No SML-D13UWT86C
Manufacturer Rohm Semiconductor
Catalog LED Indication - Discrete
Description LED RED 1608 SMD / Red 620nm LED Indication - Discrete 2V 0603 (1608 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Rohm Semiconductor
Series Automotive, AEC-Q101, SML-D13
Package Tape & Reel
Color Red
Configuration Standard
Lens Color White
Millicandela Rating 85mcd
Lens Style Rectangle with Flat Top
Lens Size 1.20mm x 0.80mm
Voltage - Forward (Vf) (Typ) 2V
Current - Test 20mA
Mounting SMD (SMT)
Wavelength - Dominant 620nm
Package / Case 0603 (1608 Metric)
Supplier Device Package 1608 (0603)
Dimension 1.60mm L x 0.80mm W
Height (Max) 0.65mm
Base Product Number SML-D13
Other Names SML-D13UWT86CAT,SML-D13UWT86CAS,SML-D13UWT86CTR,SML-D13UWT86CAR,SML-D13UWT86CDKR,SML-D13UWT86CCT,SML-D13UWT86CAQ
Standard Package 3,000
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241684-SML-D13UWT86C
Ultra Librarian 3D Model Ultra Librarian SML-D13UWT86C CAD Model

Description

The Rohm Semiconductor SML-D13UWT86C is an LED indication discrete optoelectronic device that is part of the Automotive, AEC-Q101, SML-D13 series.

  • Color: Red
  • Millicandela Rating: 85mcd
  • Voltage-Forward (Vf): 2V
  • Current Test: 20mA
  • Wavelength-Dominant: 620nm
  • Height (max): 0.65mm
  • Packaging: Tape & reel
  • Standard Package: 3,000
  • MSL Level: 3 (168 Hours)
  • REACH: Unaffected
  • HTSUS: 8541.41.0000
