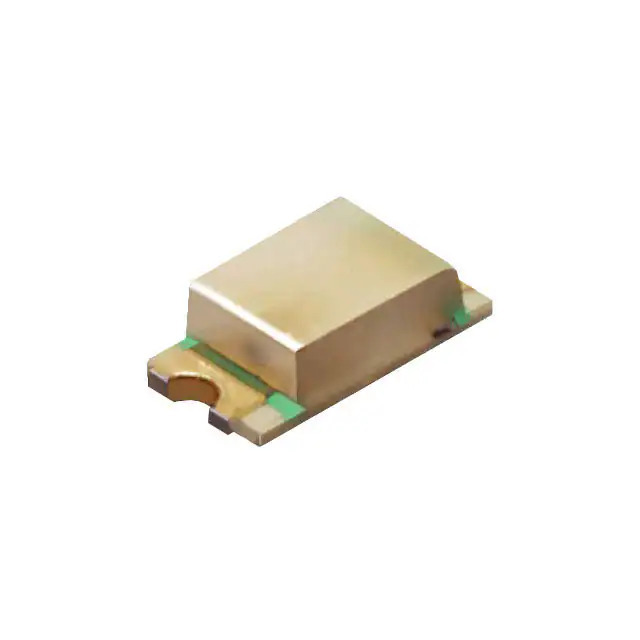

SML-D12D8WT86C Rohm Semiconductor
Same model may have multiple batches, images only for reference.

SML-D12D8WT86C

Part No SML-D12D8WT86C
Manufacturer Rohm Semiconductor
Catalog LED Indication - Discrete
Description EXCELED SERIES CHIP LED
Datasheet
SML-D12D8WT86C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - LED Indication - Discrete
Mfr Rohm Semiconductor
Series PicoLED™
Package Tape & Reel
Product Status Active
Color Orange
Configuration -
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 100mcd
Lens Style Rectangle with Flat Top
Lens Size 1.20mm x 0.80mm
Voltage - Forward (Vf) (Typ) 2.2V
Current - Test 10mA
Viewing Angle -
Mounting Type Surface Mount
Wavelength - Dominant 605nm
Wavelength - Peak -
Features -
Package / Case 0603 (1608 Metric)
Supplier Device Package 1608 (0603)
Size / Dimension 1.60mm L x 0.80mm W
Height (Max) 0.65mm
Base Product Number SML-D12
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1371771-SML-D12D8WT86C
Ultra Librarian 3D Model Ultra Librarian SML-D12D8WT86C CAD Model

Description

The SML-D12D8WT86C LED indication from Rohm Semiconductor is a high-quality surface mount LED with a color of orange.

  • Color: Orange
  • Millicandela Rating: 100mcd
  • Forward Voltage: 2.2V @ 10mA
  • Size: 1.60mm L x 0.80mm W
  • Lens Style: Rectangular with Flat Top
  • Lens Size: 1.20mm x 0.80mm
  • Mounting Type: Surface Mount
  • Packaging: Tape & Reel
