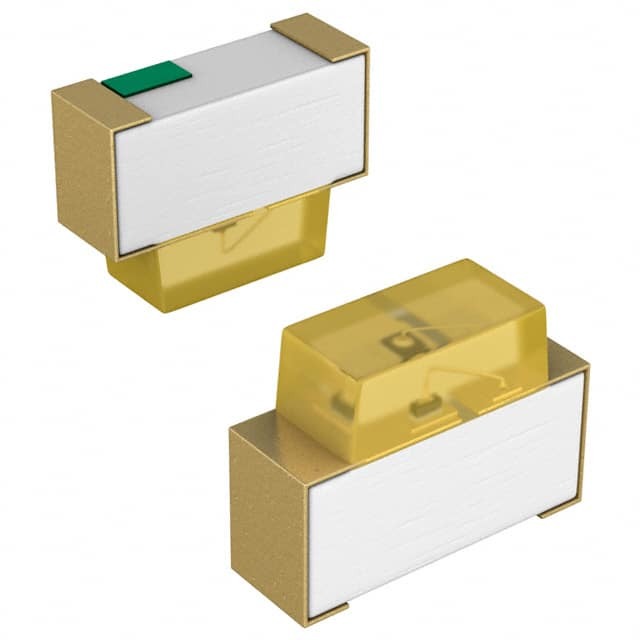

Same model may have multiple batches, images only for reference.
SML-A12D8TT86 Rohm Semiconductor
Same model may have multiple batches, images only for reference.

SML-A12D8TT86

Part No SML-A12D8TT86
Manufacturer Rohm Semiconductor
Catalog LED Indication - Discrete
Description LED ORANGE CLEAR 1611 SMD R/A / Orange 605nm LED Indication - Discrete 2.2V 2-SMD, No Lead
Datasheet
SML-A12D8TT86 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Rohm Semiconductor
Series EXCELED™
Package Tape & Reel
Color Orange
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 100mcd
Lens Style Rectangle with Flat Top
Lens Size 1.20mm x 0.55mm
Voltage - Forward (Vf) (Typ) 2.2V
Current - Test 20mA
Mounting Type Surface Mount, Right Angle
Wavelength - Dominant 605nm
Package / Case 2-SMD, No Lead
Supplier Device Package 1611(0605)
Dimension 1.60mm L x 1.15mm W
Height (Max) 0.65mm
Base Product Number SML-A12
Other Names SML-A12D8TT86R,846-1156-1,846-1156-2,SML-A12D8TT86Q,SML-A12D8TT86T,SML-A12D8TT86S,846-1156-6,SML-A12D8TT86
Standard Package 3,000
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241668-SML-A12D8TT86
Ultra Librarian 3D Model Ultra Librarian SML-A12D8TT86 CAD Model

Description

The SML-A12D8TT86 is a LED indication with a dominant wavelength of 605nm and a voltage forward of 2.2V.

  • Wavelength-Dominant: 605nm
  • Voltage Forward: 2.2V
  • Current Test: 20mA
  • Millicandela Rating: 100mcd
  • Package/Case: 2-SMD, No Lead
  • Supplier Device Package: 1611(0605)
  • Lens: Clear Colorless
  • Lens Style: Rectangle with flat top
  • Height: 0.65mm
  • Dimensions: 1.60mm L x 1.15mm W
