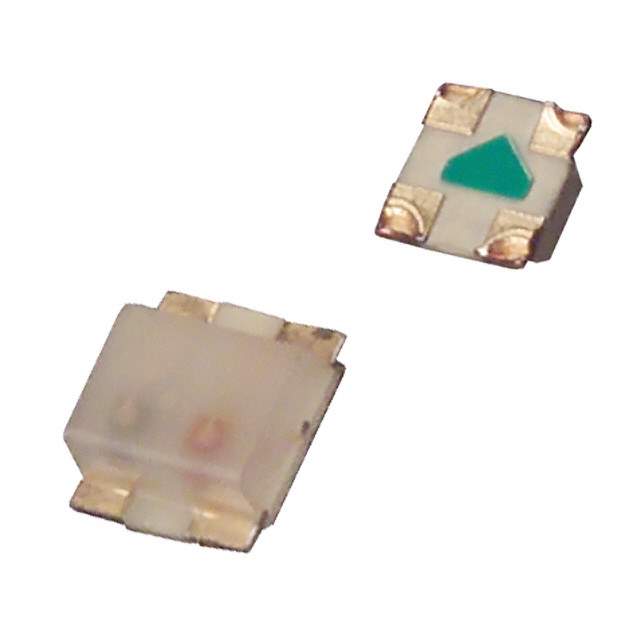

SML-522MD8WT86 Real Image
Same model may have multiple batches, images only for reference.

SML-522MD8WT86

Part No SML-522MD8WT86
Manufacturer Rohm Semiconductor
Catalog LED Indication - Discrete
Description LED GREEN/ORG DIFFUSED 0605 SMD
Datasheet
SML-522MD8WT86 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Active
Color Green, Orange
Configuration Independent
Lens Color White
Lens Transparency Diffused
Millicandela Rating 25mcd Green, 100mcd Orange
Lens Style/Size Rectangle with Flat Top, 1.30mm x 1.10mm
Forward Voltage 2.2V Green, 2.2V Orange
Current - Test 20mA Green, 20mA Orange
Mounting SMD (SMT)
Wavelength - Dominant 572nm Green, 605nm Orange
Case / Package 1315 (0605)
Height (Max) 0.70mm
Win Source Part Number 211844-SML-522MD8WT86
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SML-522MD8WT86 CAD Model

Description

The Rohm Semiconductor SML-522MD8WT86 is an optoelectronic product that comes in Green and Orange color.

  • Millicandela Rating: 25mcd Green, 100mcd Orange
  • Forward Voltage: 2.2V Green, 2.2V Orange
  • Viewing Angle: -
  • Lens Color: White
  • Lens Style/Size: Rectangle with Flat Top, 1.30mm x 1.10mm
  • Current - Test: 20mA Green, 20mA Orange
  • Wavelength - Dominant: 572nm Green, 605nm Orange
  • Height (Max): 0.70mm
  • Packaging: Reel - TR
  • Configuration: Independent
  • Status: Active
  • Supply and Demand Status: Balanced
