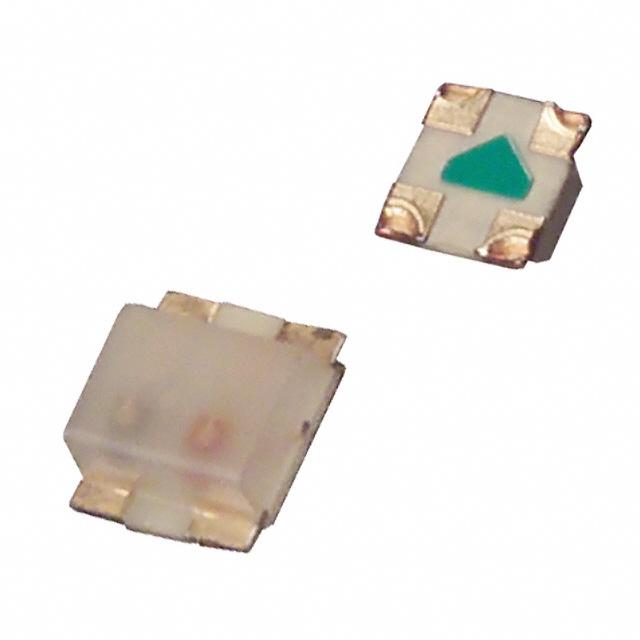

SML-521MDWT86 Rohm Semiconductor
Same model may have multiple batches, images only for reference.

SML-521MDWT86

Part No SML-521MDWT86
Manufacturer Rohm Semiconductor
Catalog LED Indication - Discrete
Description LED GREEN/ORG DIFFUSED 0605 SMD
Datasheet
SML-521MDWT86 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Not For New Designs
Color Green, Orange
Configuration Independent
Lens Color White
Lens Transparency Diffused
Millicandela Rating 16mcd Green, 63mcd Orange
Lens Style/Size Rectangle with Flat Top, 1.10mm x 1.30mm
Forward Voltage 2.2V Green, 1.9V Orange
Current - Test 20mA Green, 20mA Orange
Mounting SMD (SMT)
Wavelength - Peak 570nm Green, 611nm Orange
Case / Package 1315 (0605)
Height (Max) 0.70mm
Win Source Part Number 029397-SML-521MDWT86
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SML-521MDWT86 CAD Model

Description

The 029397-SML-521MDWT86 is an optoelectronic product from Rohm Semiconductor.

  • Lens Style: Rectangle with a flat top lens style of 1.10mm x 1.30mm size
  • Colors: Green and orange colors
  • Lens Color: White
  • Lens Transparency: Diffused
  • Millicandela Rating: 16mcd for green and 63mcd for orange
  • Forward Voltage: 2.2V for green and 1.9V for orange
  • Current Test: 20mA for both colors
  • Wavelength-Dominant: Not specified
  • Wavelength-Peak: Not specified
  • Packaging: Reel - TR packaging
  • Maximum Height: 0.70mm
  • Status: Not for new designs
  • Popularity: Medium popularity rating
