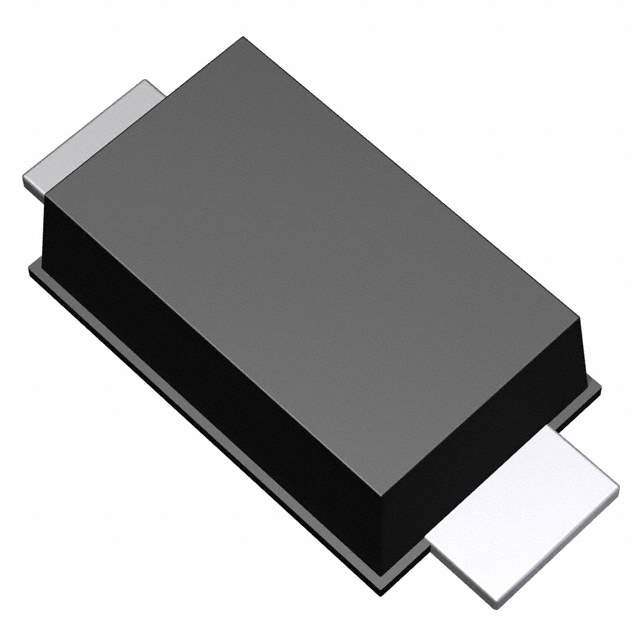

SMF22VTR Real Image
Same model may have multiple batches, images only for reference.

SMF22VTR

Part No SMF22VTR
Manufacturer Rohm Semiconductor
Catalog TVS - Diodes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Rohm Semiconductor
Package Tape & Reel
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 22V (Max)
Voltage - Breakdown (Min) 24.4V
Voltage - Clamping (Max) @ Ipp 35.5V
Current - Peak Pulse (10/1000µs) 5.6A
Power - Peak Pulse 200W
Power Line Protection No
Applications General Purpose
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Package / Case SOD-123F
Supplier Device Package PMDU
Base Product Number SMF22
Other Names 846-SMF22VDKR,846-SMF22VTR,846-SMF22VCT
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1298620-SMF22VTR
Ultra Librarian 3D Model Ultra Librarian SMF22VTR CAD Model

Description

The SMF22VTR is a Zener type TVS diode manufactured by Rohm Semiconductor.

  • Application: General-purpose applications
  • Package: Tape and Reel
  • Maximum Reverse Standoff Voltage: 22V
  • Minimum Breakdown Voltage: 24.4V
  • Clamping Voltage: 35.5V @ peak pulse current
  • Peak Pulse Power: 200W
  • Channel: Unidirectional
  • Peak Pulse Current: 5.6A
  • Package: SOD-123F
  • Mounting: Surface mount technology (SMT)
  • Rated Operation Temperature: 150°C
  • REACH: Affected
  • ECCN: EAR99
