Products specifications

Category Circuit Protection>TVS - Diodes
Mfr Rohm Semiconductor
Series Automotive, AEC-Q101
Package Tape & Reel
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 18V
Voltage - Breakdown (Min) 20V
Voltage - Clamping (Max) @ Ipp 29.2V
Current - Peak Pulse (10/1000µs) 6.8A
Power - Peak Pulse 200W
Power Line Protection No
Applications Automotive
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Package / Case SOD-123F
Supplier Device Package PMDU
Base Product Number SMF18
Other Names SMF18VTFCT,SMF18VTFDKR
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1298605-SMF18VTFTR
Ultra Librarian 3D Model Ultra Librarian SMF18VTFTR CAD Model

Description

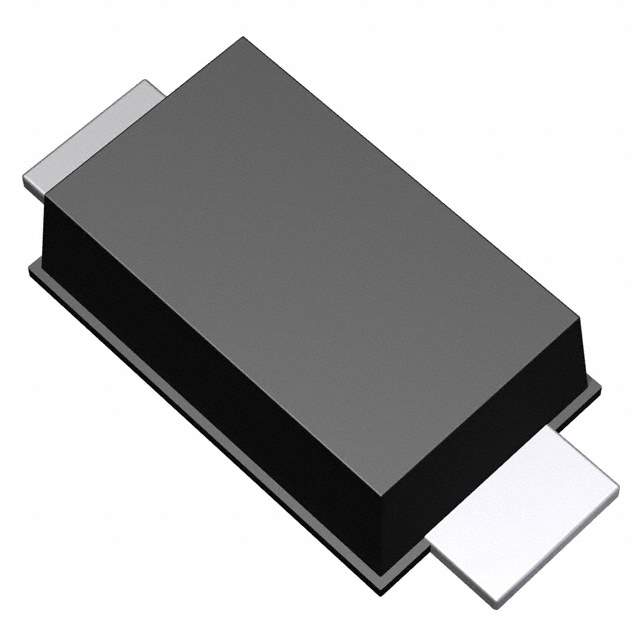

The SMF18VTFTR is a Zener type TVS Diode designed for use in automotive applications.

  • Channel: unidirectional channel
  • Reverse Standoff Voltage: 18V
  • Breakdown Voltage: 20V
  • Maximum Clamping Voltage @ Ipp: 29.2V
  • Peak Pulse Power: 200W
  • Package: SOD-123F package
  • Mounting: SMD (SMT) technology
  • Operating Temperature: capable of operating @ temperatures up to 150°C (TJ)
  • REACH: affected
  • HTSUS: 8541.10.0080
  • Manufacturer: Rohm Semiconductor
  • Standard Package: 3,000
