Products specifications

Manufacturer Rohm Semiconductor
Packaging Tube
Diode Type Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Maximum) 650V
Current - Average Rectified (Io) 12A
Voltage - Forward (Vf) (Maximum) at If 1.55V at 12A
Speed No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0ns
Current - Reverse Leakage at Vr 240μA at 600V
Capacitance at Vr, F 438pF at 1V, 1MHz
Mounting Style Through Hole
Manufacturer Package TO-220-2 Full Pack
Supplier Device Package TO-220FM
Operating Temperature - Junction 175°C (Maximum)
Part Number Series SCS212
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 813161-SCS212AMC
Ultra Librarian 3D Model Ultra Librarian SCS212AMC CAD Model

Description

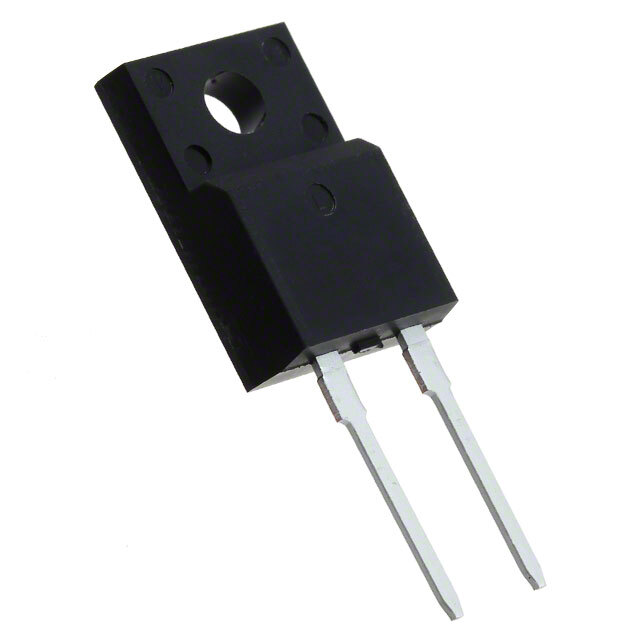

The Rohm Semiconductor SCS212AMC is a silicon carbide Schottky diode from Rohm Semiconductor.

  • Maximum Reverse Voltage: 650V
  • Maximum Forward Voltage: 1.55V @ 12A
  • Reverse Leakage Current: 240μA @ 600V
  • Capacitance: 438pF @ 1V, 1MHz
  • Compliance: RoHS
  • Package: Tube
  • Mounting Style: Through Hole
