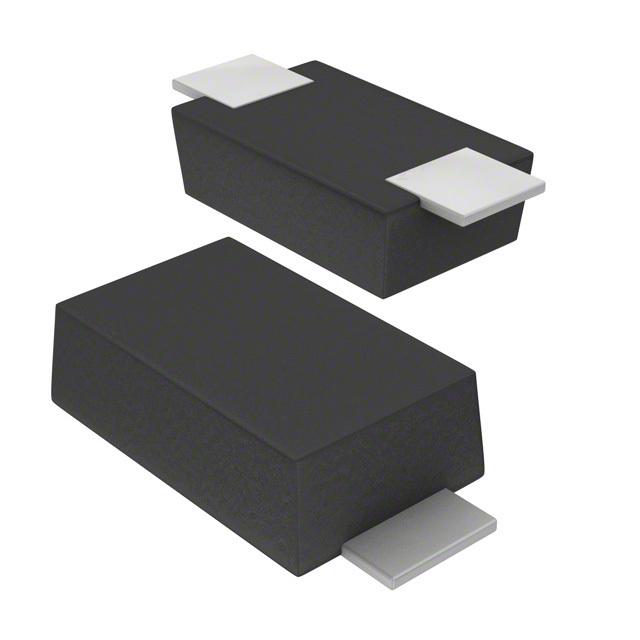

Same model may have multiple batches, images only for reference.
RSA12MGTR Rohm Semiconductor
Same model may have multiple batches, images only for reference.

RSA12MGTR

Part No RSA12MGTR
Manufacturer Rohm Semiconductor
Catalog TVS - Diodes
Description TVS DIODE 12VWM 19.9VC SOD123
Datasheet
RSA12MGTR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Not For New Designs
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 12V
Minimum Breakdown Voltage 13.3V
Max Clamping Voltage 19.9V
Peak Pulse Current(Ippm) 10.1A (8/20μs)
Power Dissipation - Pd 200W
Applications General Purpose
Mounting SMD (SMT)
Case / Package SOD-123
Win Source Part Number 115018-RSA12MGTR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian RSA12MGTR CAD Model

Description

The RSA12MGTR is a zener diode used for general purpose applications.

  • STAND-OFF voltage (Vwm): 12V
  • Minimum breakdown voltage: 13.3V
  • Maximum clamping voltage: 19.9V
  • Peak pulse current: 10.1A (8/20μs)
  • Mounted using: surface-mount technology (SMT)
  • Packaged in: a SOD-123 case/package
  • New designs: not for new designs
  • ECCN: EAR99
  • Popularity: medium
