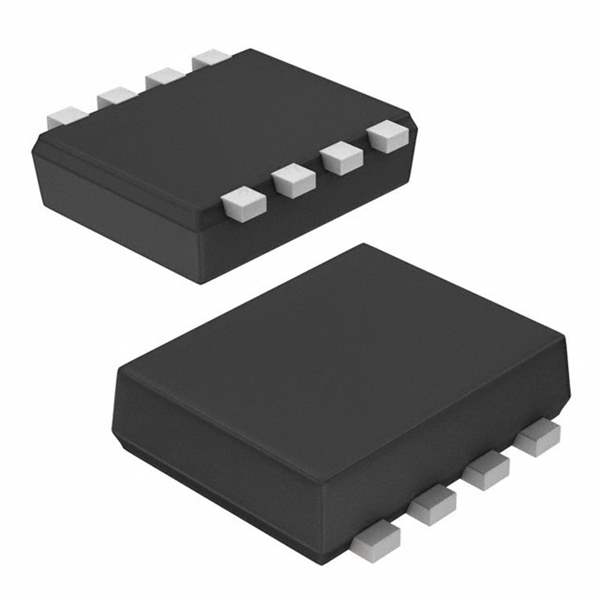

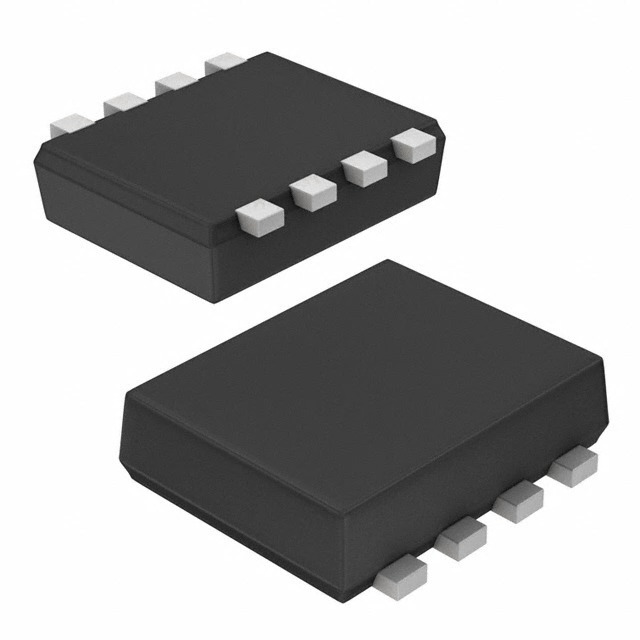

Same model may have multiple batches, images only for reference.

RQ1E070RPTR

Name: RQ1E070RPTR
Brand: Rohm Semiconductor
SKU: 803684
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	RQ1E070RPTR
Manufacturer	Rohm Semiconductor
Catalog	FETs - Single
Description	MOSFET P-CH 30V 7A TSMT8 / Pch -30V -7A Power MOSFET
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Rohm Semiconductor
Packaging	Reel
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) at 25°C	7A
Drive Voltage (Max Rds On, Min Rds On)	4V, 10V
Rds On (Maximum) at Id, Vgs	17mOhm at 7A, 10V
Vgs(th) (Maximum) at Id	2.5V at 1mA
Gate Charge (Qg) (Maximum) at Vgs	26nC at 5V
Maximum Vgs	±20V
Input Capacitance (Ciss) (Maximum) at Vds	2700pF at 10V
Power Dissipation (Maximum)	550mW
Temperature Range - Operating	150°C
Mounting Style	SMD
Supplier Device Package	TSMT8
Manufacturer Package	8-SMD, Flat Lead
Manufacturer Pack Quantity	3,000
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Balance
Win Source Part Number	803684-RQ1E070RPTR
Ultra Librarian 3D Model	Ultra Librarian RQ1E070RPTR CAD Model

Alternative Products

Description

The RQ1E070RPTR is a MOSFET (metal oxide) P-channel FET type integrated circuit (IC) manufactured by Rohm Semiconductor.

Mounting: Surface Mount
Drive Voltage (max Rds on, min Rds on): 4V, 10V
Temperature Range: 150°C
Package: 8-SMD, flat lead
Power Dissipation (Maximum): 550mW
Supply and Demand Status: Balanced
Manufacturer Pack Quantity: 3000
MSL Level: 1 (unlimited)
Rds on (maximum) @ Id, Vgs: 17mOhm @ 7A, 10V
Gate Charge (Qg) (maximum) @ Vgs: 26nC @ 5V
Input Capacitance (Ciss) (maximum) @ Vds: 2700pF @ 10V
Current - Continuous Drain (Id) @ 25°C: 7A
Vgs(th) (maximum) @ Id: 2.5V @ 1mA
Maximum Vgs: ±20V
