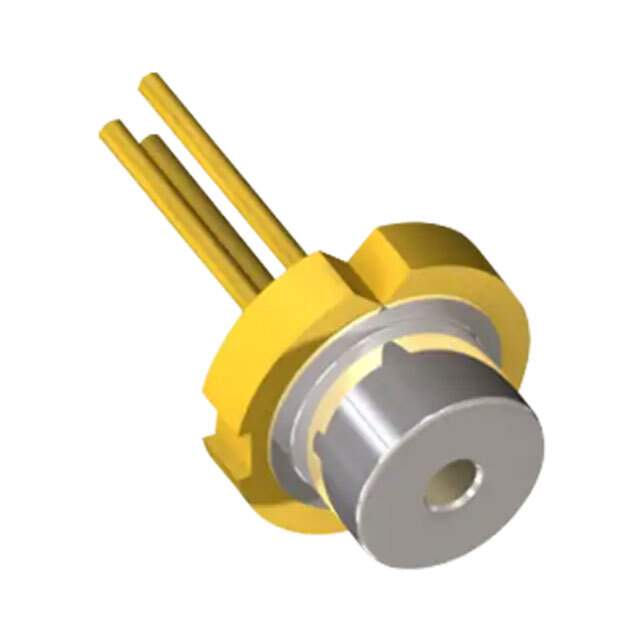

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Optoelectronics>Laser Diodes, Laser Modules
Mfr Rohm Semiconductor
Package Tray
Wavelength 790nm
Voltage - Input 2.3V
Current Rating (Amps) 60mA
Power (Watts) 4.5mW
Package / Case Radial, Can - 3 Lead
Base Product Number RLD78
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.41.0000
Other Names 846-RLD78MZA6-00A
Standard Package 500
Win Source Part Number 1000566-RLD78MZA6-00A
Ultra Librarian 3D Model Ultra Librarian RLD78MZA6-00A CAD Model

Description

The 1000566-RLD78MZA6-00A is a laser diode module from Rohm Semiconductor designed for use in optoelectronics.

  • Power Rating: 4.5mW
  • Voltage Input: 2.3V
  • Wavelength: 790nm
  • Package: Radial, Can - 3 Lead
  • Win Source Part Number: 1000566-RLD78MZA6-00A
