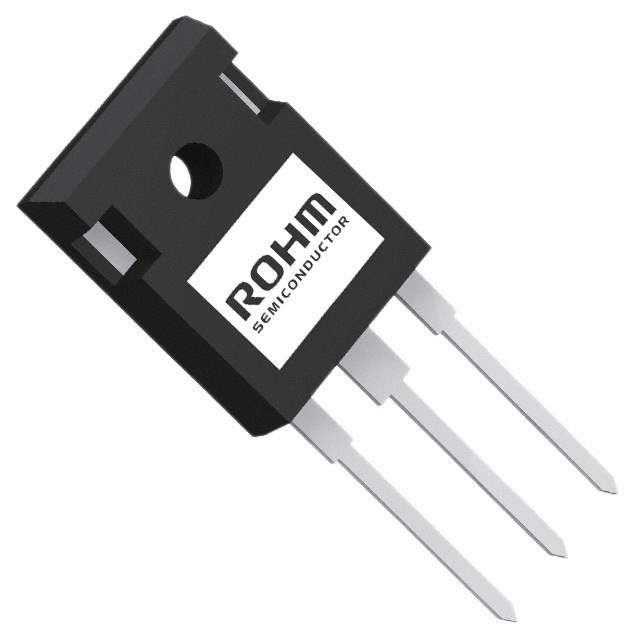

RGW80TS65DGC11 Real Image
Same model may have multiple batches, images only for reference.

RGW80TS65DGC11

Part No RGW80TS65DGC11
Manufacturer Rohm Semiconductor
Catalog IGBTs - Single
Description 650V 40A FIELD STOP TRENCH IGBT / IGBT Trench Field Stop 650 V 78 A 214 W Through Hole TO-247N
Datasheet
RGW80TS65DGC11 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - IGBTs - Single
Manufacturer Rohm Semiconductor
Packaging Tube
IGBT Type Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) 650 V
Current - Collector (Ic) (Max) 78 A
Current - Collector Pulsed (Icm) 160 A
Vce(on) (Max) @ Vge, Ic 1.9V @ 15V, 40A
Power - Max 214 W
Switching Energy 760µJ (on), 720µJ (off)
Input Type Standard
Gate Charge 110 nC
Td (on/off) @ 25°C 44ns/143ns
Test Condition 400V, 40A, 10Ohm, 15V
Reverse Recovery Time (trr) 92 ns
Temperature Range - Operating -40°C ~ 175°C (TJ)
Mounting Through Hole
Case / Package TO-247-3
Supplier Device Package TO-247N
Base Product Number RGW80
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Standard Package 450
Win Source Part Number 1324497-RGW80TS65DGC11
Ultra Librarian 3D Model Ultra Librarian RGW80TS65DGC11 CAD Model

Description

The Rohm Semiconductor RGW80TS65DGC11 is an IGBT transistor with a trench field stop.

  • Voltage Collector-Emitter Breakdown: 650V
  • Current Collector: 78A
  • Maximum Power Dissipation: 214W
  • Switching Energy (On): 760μJ
  • Switching Energy (Off): 720μJ
  • Mounting: Through-Hole Technology
  • Package: TO-247-3
  • Reverse Recovery Time: 92ns
  • Gate Charge: 110nC
