Manufacturer Rohm Semiconductor
Win Source Part Number 1241949-RB715Z
Manufacturer Homepage www.rohm.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian RB715Z CAD Model

Description

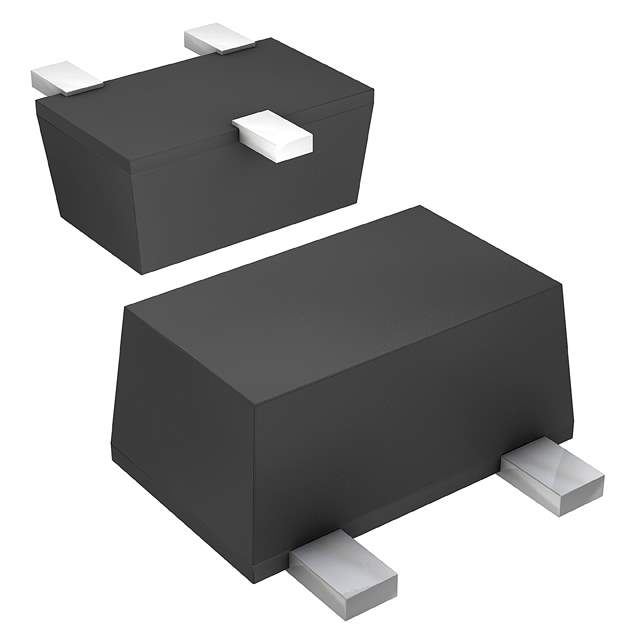

The RB715Z is a Schottky Barrier Diode manufactured by Rohm Semiconductor. This diode is designed for high-speed switching and low forward voltage drop applications. It is frequently used in applications where efficient rectification and fast switching are required.

Applications:

  • DC-DC Converters: Used as a rectifier to improve the efficiency of DC-DC conversion.
  • Switching Power Supplies: Provides fast rectification in switching power supply circuits.
  • Reverse Polarity Protection: Protects circuits from damage if the power supply is connected with reverse polarity.
  • Free-Wheeling Diode: Used to dissipate energy from inductive loads when a switch is turned off.
  • Small Signal Detection: Can be used for detecting small signals due to its low forward voltage drop.

Features:

  • Low Forward Voltage Drop: Minimizes power loss, increasing circuit efficiency.
  • Fast Switching Speed: Allows for high-frequency operation.
  • Small Surface Mount Package: Suitable for compact designs.
  • Low Leakage Current: Reduces power consumption and improves overall efficiency.
  • High Surge Current Capability: Provides robustness against transient current surges.

Benefits:

  • High Efficiency: The low forward voltage drop contributes to efficient circuit operation.
  • Fast Response Time: Enables high-frequency switching with minimal losses.
  • Compact Size: The small package makes it ideal for space-constrained applications.
  • Reliable Operation: Provides stable performance over a wide range of operating conditions.
  • Energy Saving: The low leakage current helps to conserve energy.

Technical Specifications:

The RB715Z has a maximum repetitive peak reverse voltage of 30V. The average rectified forward current is typically around 100mA. The forward voltage drop is very low (check the datasheet for the exact value, typically around 0.3-0.4V at the rated current). The reverse recovery time is extremely fast. It's typically available in a small surface-mount package like a SOD-323. It operates over a wide temperature range, typically from -40°C to +125°C.

This Schottky diode is frequently used in portable electronics, battery-powered devices, and various other applications that require efficient rectification and fast switching. The RB715Z is a reliable and efficient choice for demanding circuit designs.
