Same model may have multiple batches, images only for reference.

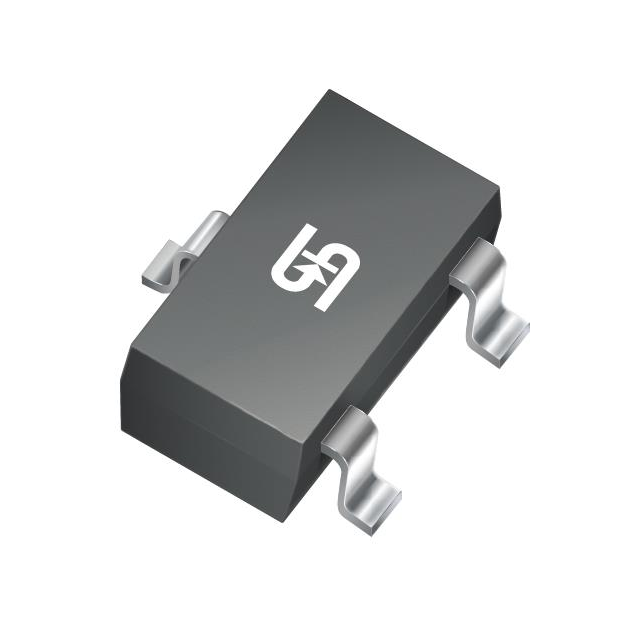

RB706F-40 Real Image
Same model may have multiple batches, images only for reference.

RB706F-40

Part No RB706F-40
Manufacturer Rohm Semiconductor
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 40V UMD3
Datasheet
RB706F-40 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Active
Diode Configuration 1 Pair Series Connection
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40V
Current - Average Rectified (Io) (per Diode) 30mA
Voltage - Forward (Vf) (Max) @ If 370mV @ 1mA
Current - Reverse Leakage @ Vr 1μA @ 10V
Operating Temperature - Junction 125°C (Max)
Mounting SMD (SMT)
Case / Package UMD3
Win Source Part Number 094862-RB706F-40
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian RB706F-40 CAD Model

Description

The RB706F-40 is a Schottky diode manufactured by Rohm Semiconductor.

  • Configuration: It is a pair of series-connected diodes
  • Family: Diodes, Rectifiers - Single family of discrete semiconductor products
  • Application: suitable for use in various electronic applications that require low forward voltage drop and high switching speed.
