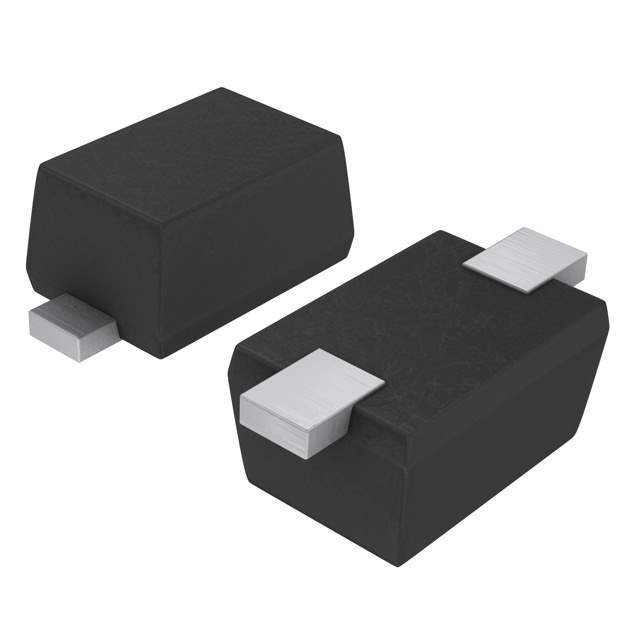

The RB520S-30TE61 is a Schottky barrier diode manufactured by Rohm Semiconductor. This diode is designed for high-speed switching and low forward voltage drop applications, making it suitable for various electronic circuits requiring efficient rectification and protection.

Applications

• DC-DC converters
• AC-DC adapters
• Freewheeling diodes in inductive loads
• Reverse polarity protection
• High-frequency rectification

Features

• Low forward voltage (VF = 0.37V at IF = 1A)
• High-speed switching
• Small surface mount package (SOT-23)
• High surge current capability
• Pb-free and RoHS compliant

Benefits

• Increased efficiency in power conversion due to low forward voltage drop
• Fast response time suitable for high-frequency applications
• Compact design allows for use in space-constrained applications
• Robust performance under surge conditions
• Environmentally friendly due to Pb-free and RoHS compliance

Specifications

The RB520S-30TE61 has a maximum repetitive peak reverse voltage (VRRM) of 30V and a maximum average forward rectified current (IF(AV)) of 2A. The forward voltage (VF) is typically 0.37V at a forward current (IF) of 1A. It operates within a temperature range of -40°C to +125°C. The device is housed in a small SOT-23 surface mount package, facilitating ease of assembly.

The RB520S-30TE61 Schottky diode offers a combination of efficiency, speed, and compact size, making it well-suited for modern electronic devices. The low forward voltage drop minimizes power losses, while the high switching speed enables use in high-frequency circuits. The SOT-23 package allows for efficient board space utilization.
