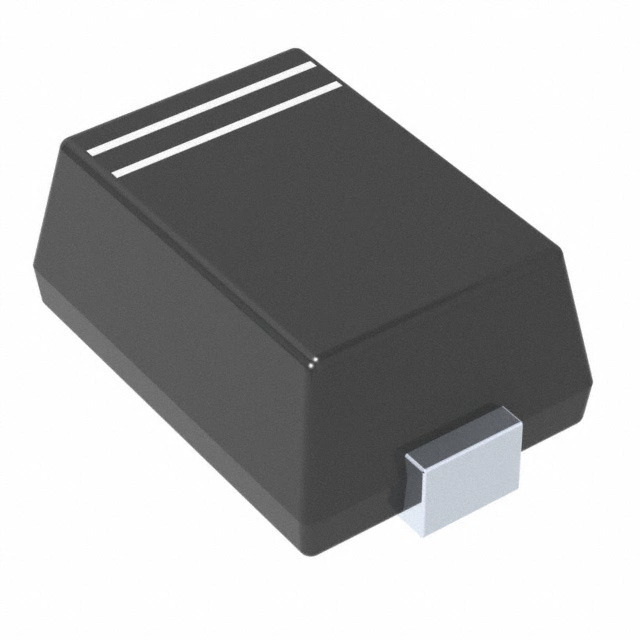

RB520CM-30T2R Rohm Semiconductor
Same model may have multiple batches, images only for reference.

RB520CM-30T2R

Part No RB520CM-30T2R
Manufacturer Rohm Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 30V 100MA VMN2M
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Rohm Semiconductor
Packaging Reel
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 30V
Current - Average Rectified (Io) 100mA
Voltage - Forward (Vf) (Maximum) at If 450mV at 10mA
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage at Vr 500nA at 10V
Mounting Style SMD
Manufacturer Package 2-SMD, Flat Lead
Supplier Device Package VMN2M
Operating Temperature - Junction 150°C (Maximum)
Manufacturer Pack Quantity 8,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 800646-RB520CM-30T2R
Ultra Librarian 3D Model Ultra Librarian RB520CM-30T2R CAD Model

Description

The RB520CM-30T2R is a Schottky diode designed for SMD mounting.

  • Operating Temperature (maximum): 150°C
  • Voltage - DC Reverse (Vr) (maximum): 30V
  • Current - Average Rectified (Io): 100mA
  • Speed: Fast Recovery = 200mA (Io)
  • Voltage - Forward (Vf) (maximum) @ If: 450mV @ 10mA
  • Current - Reverse Leakage @ Vr: 500nA @ 10V
  • Package: 2-SMD, flat lead
  • Manufacturer Pack Quantity: 8,000
  • Supplier Device Package: VMN2M
