Categories Discrete Semiconductor Products
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Active
Diode Configuration 2 Independent
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 20V
Current - Average Rectified (Io) (per Diode) 1A
Voltage - Forward (Vf) (Max) @ If 430mV @ 1A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 800μA @ 10V
Operating Temperature - Junction 125°C (Max)
Mounting SMD (SMT)
Case / Package TUMD5
Win Source Part Number 1091438-RB496KATR
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian RB496KATR CAD Model

Description

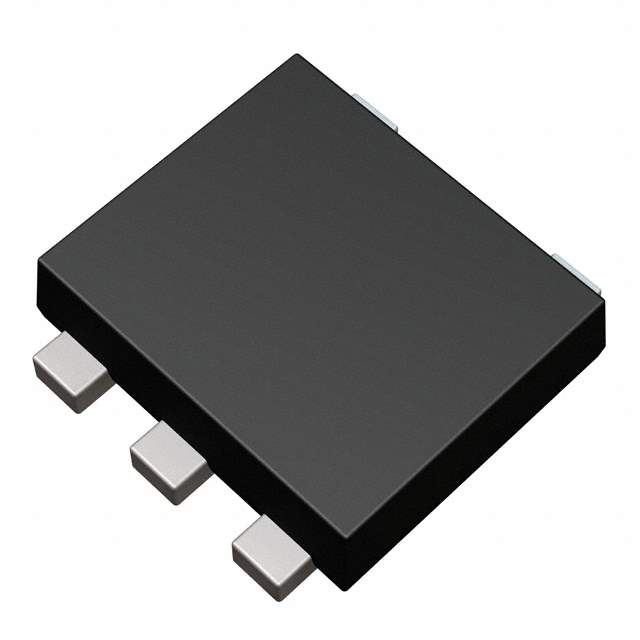

The RB496KATR is a Schottky Barrier Diode manufactured by Rohm Semiconductor. It is designed for applications requiring high-speed switching and low forward voltage drop, making it suitable for use in various electronic circuits, especially those involving power rectification and voltage clamping.

Applications

  • DC-DC Converters
  • Reverse Polarity Protection
  • Freewheeling Diodes in Inductive Loads
  • Switching Power Supplies
  • High-Frequency Rectification

Features

  • Low Forward Voltage (VF)
  • High-Speed Switching
  • Small Surface Mount Package
  • High Surge Current Capability
  • RoHS Compliant

Benefits

  • Improved Efficiency in Power Conversion due to minimal forward voltage drop.
  • Reduced Power Loss and Heat Generation.
  • Compact design facilitates use in space-constrained applications.
  • Enhanced system reliability with its capability to handle high surge currents.
  • Environmentally friendly, compliant with RoHS standards.

Additional Details

The RB496KATR features a maximum repetitive reverse voltage (VRRM) of 30V and a maximum average forward rectified current (IF(AV)) of 1.0A. Its forward voltage drop is typically around 0.4V at 1A. Encased in a compact surface-mount package, it is optimized for automated assembly and reduced board space. This Schottky diode is characterized by its fast reverse recovery time, which is crucial for minimizing switching losses in high-frequency applications.

The low forward voltage drop is a critical parameter, minimizing power dissipation in circuits and contributing to higher overall efficiency. This is particularly advantageous in battery-powered devices and energy-efficient systems. The robust surge current handling capability also ensures that the diode can withstand transient voltage spikes without being damaged, thereby improving the reliability of the entire application.
