Same model may have multiple batches, images only for reference.

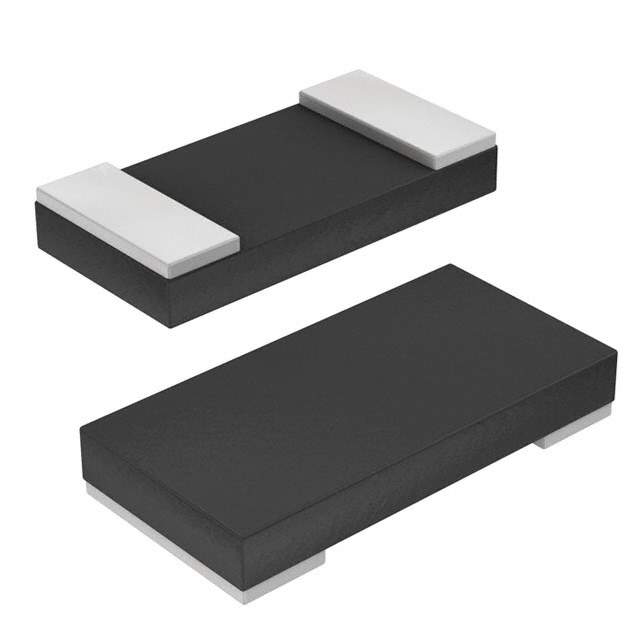

PMR18EZPFU5L00 Real Image
Same model may have multiple batches, images only for reference.

PMR18EZPFU5L00

Part No PMR18EZPFU5L00
Manufacturer Rohm Semiconductor
Catalog Chip Resistor - Surface Mount
Description RES 0.005 OHM 1% 1W 1206 / 5 mOhms ±1% 1W Chip Resistor 1206 (3216 Metric) Automotive AEC-Q200, Current Sense Metal Element
Datasheet
PMR18EZPFU5L00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Resistance 5 mOhms
Tolerance ±1%
Power (Watts) 1W
Composition Metal Element
Features Automotive AEC-Q200, Current Sense
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Case / Package 1206 (3216 Metric)
Supplier Device Package 1206
Ratings AEC-Q200
Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.017" (0.43mm)
Number of Terminations 2
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number RHM.005ALTR,RHM.005ALDKR,PMR18EZPFU5L0,RHM.005ALCT
Standard Package 5,000
Win Source Part Number 1326185-PMR18EZPFU5L00
Ultra Librarian 3D Model Ultra Librarian PMR18EZPFU5L00 CAD Model

Description

The 1139765 is a chip resistor manufactured by Rohm Semiconductor that is designed for automotive applications.

  • Resistance: 5 mOhms
  • Power Rating: 1W
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • AEC-Q200: Rated
  • Package: 1206 (3216 Metric)
  • Reel: 5000
  • Composition: Metal element
  • Terminations: Two
  • Application: Current sense resistor
  • Temperature Range: -55°C to 155°C
  • Height Seated: 0.017” (0.43mm)
