Products specifications

Manufacturer Rohm Semiconductor
Packaging Reel
Resistance 390 Ohms
Tolerance ±5%
Power (Watts) 0.063W, 1/16W
Composition Thick Film
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Manufacturer Package 0402
Supplier Device Package 0402
Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Maximum) 0.016" (0.40mm)
Number of Terminations 2
Manufacturer Pack Quantity 10,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 800805-MCR01MRTJ391
Ultra Librarian 3D Model Ultra Librarian MCR01MRTJ391 CAD Model

Description

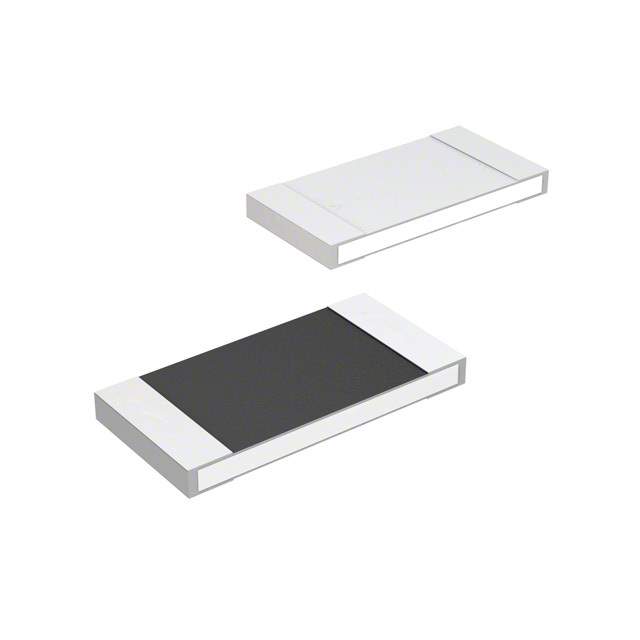

The MCR01MRTJ391 is a thick film chip resistor manufactured by Rohm Semiconductor. This resistor is designed for general purpose applications in electronic circuits and devices.

Applications:

  • Consumer Electronics: Used in televisions, audio equipment, and other consumer devices for current limiting, voltage division, and pull-up/pull-down resistor applications.
  • Industrial Equipment: Integrated into industrial control systems, power supplies, and testing equipment for stable and reliable resistance.
  • Automotive Electronics: Applied in automotive control modules, sensors, and lighting systems for consistent electrical performance.
  • Medical Devices: Employed in medical instruments and diagnostic equipment where precision and reliability are crucial.
  • Telecommunications: Utilized in communication devices, such as smartphones and network equipment, for signal conditioning and impedance matching.

Features:

  • Thick Film Technology: Manufactured using thick film technology, providing stable and reliable resistance values.
  • Compact Size: Small physical dimensions (typically 0402 or 0603) enable high-density circuit designs.
  • Surface Mount Device (SMD): Designed for surface mount technology, allowing for automated assembly and high-volume manufacturing.
  • Resistance Value: Offers a resistance value of 390 ohms (indicated by the code 391).
  • Tolerance: Features a tolerance of ±5%, ensuring accurate resistance values within specified limits.
  • Temperature Coefficient: Low temperature coefficient of resistance (TCR) ensures stable performance over a wide temperature range.
  • Lead-Free Construction: Manufactured using lead-free materials, complying with environmental regulations.

Benefits:

  • Stable Resistance: Thick film technology ensures stable resistance values, providing consistent performance in electronic circuits.
  • Compact Design: Small size allows for high-density circuit designs, saving space and reducing component count.
  • Easy Assembly: Surface mount design facilitates automated assembly, reducing manufacturing costs and improving production efficiency.
  • Accurate Resistance: ±5% tolerance ensures accurate resistance values within specified limits, suitable for various applications.
  • Reliable Performance: Low TCR provides stable performance over a wide temperature range, enhancing circuit reliability.

The Rohm Semiconductor MCR01MRTJ391 thick film chip resistor combines stable resistance, compact size, and easy assembly, making it a reliable component for various electronic applications. Its features ensure consistent electrical performance and circuit reliability.
