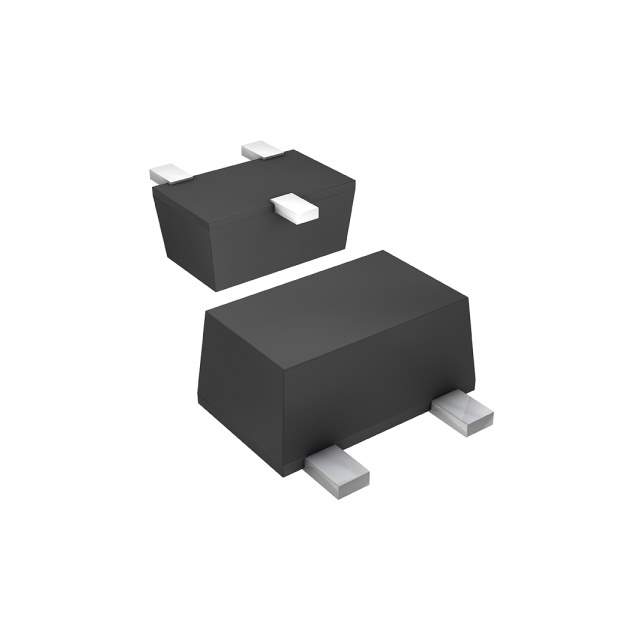

DA221WMTL Real Image
Same model may have multiple batches, images only for reference.

DA221WMTL

Part No DA221WMTL
Manufacturer Rohm Semiconductor
Catalog Diodes, Rectifiers - Arrays
Description LOW-LEAKAGE, 20V, 100MA, SERIES / Diode Array 1 Pair Series Connection Standard 20 V 100mA Surface Mount SC-89, SOT-490
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Mfr Rohm Semiconductor
Package Tape & Reel (TR)
Diode Configuration 1 Pair Series Connection
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 20 V
Current - Average Rectified (Io) (per Diode) 100mA
Voltage - Forward (Vf) (Max) @ If 1 V @ 10 mA
Speed Small Signal =< 200mA (Io), Any Speed
Current - Reverse Leakage @ Vr 100 nA @ 15 V
Operating Temperature - Junction 150°C
Mounting SMD (SMT)
Package / Case SC-89, SOT-490
Supplier Device Package EMD3F
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0070
Other Names 846-DA221WMTLTR
Standard Package 3,000
Win Source Part Number 1170574-DA221WMTL
Ultra Librarian 3D Model Ultra Librarian DA221WMTL CAD Model

Description

The DA221WMTL is a rectifier diode array from Rohm Semiconductor. It comes in a SC-89, SOT-490 package/case and is mounted using SMD (SMT).

  • Package/Case: SC-89, SOT-490
  • Mounting Type: SMD (SMT)
  • Diode Type: Standard
  • Voltage - DC Reverse (Vr) (Max): 20 V
  • Voltage - Forward (Vf) (Max) @ If: 1 V @ 10 mA
  • Current - Reverse Leakage @ Vr: 100 nA @ 15 V
  • Current - Average Rectified (Io) (per Diode): 100mA
  • Diode Configuration: 1 Pair Series Connection
  • Operating Temperature: 150°C
