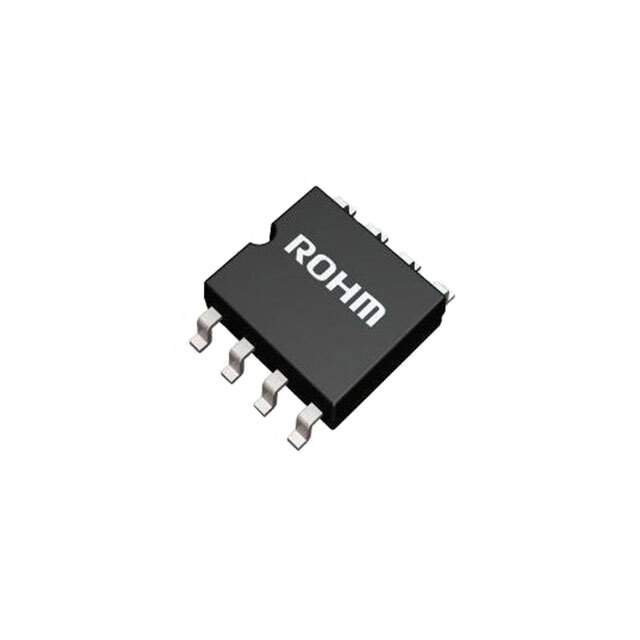

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Rohm Semiconductor
Packaging Reel
Driven Configuration Half-Bridge
Channel Type Independent
Number of Drivers 2
Gate Type IGBT, N-Channel MOSFET
Supply Voltage (V) 10V ~ 18V
Logic Voltage - VIL, VIH 1V, 2.6V
Current - Peak Output (Source, Sink) 60mA, 130mA
Input Type Non-Inverting
High Side Voltage - Max (Bootstrap) 600V
Rise / Fall Time (Typ) 200ns, 100ns
Temperature Range - Operating -40°C ~ 150°C
Mounting Style SMD
Manufacturer Package 8-SOIC
Supplier Device Package 8-SOP
Manufacturer Pack Quantity 2,500
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 805964-BS2103F-E2
Ultra Librarian 3D Model Ultra Librarian BS2103F-E2 CAD Model

Description

The BS2103F-E2 is a half-bridge gate driver IC designed by Rohm Semiconductor.

  • Channels: 2-channel independent driver
  • Applications: IGBT and N-channel MOSFET
  • Package: 8-SOP
  • Supply Voltage Range: 10V to 18V
  • Operating Temperature Range: -40°C to 150°C
  • Peak Output Current (Source): 60mA
  • Peak Output Current (Sink): 130mA
